Why this truck
Built as an ARV show/demo, this unit has the right upgrades already onboard—LiquidSpring front & rear, full LED scene/ warning package, Class 1 multiplex with multiple UV displays, and smart storage (O₂ lift, stair chair slide, SCBA/gear). It’s show-floor clean and ready for service.
|
|
Feature Highlights
-
Ride & Handling: LiquidSpring F/R for a smoother, safer ride and better stance under load.
-
Operator-Friendly: Class 1 multiplex with multiple displays, SmartTouch switching, and digital O₂ readout.
-
Crew Safety: RollTek airbags in the module + Per4Max restraints; AI-assisted 360° vision.
-
Fast Turn-In: Power-LOAD prep, dedicated LUCAS/AutoPulse storage, and interior pass-throughs speed up on-scene work.
-
Lighting Done Right: FireTech brow + M9EZ scenes + blue pathway and cabinet lighting for night ops.
Included Equipment (by System)
Chassis & Cab
-

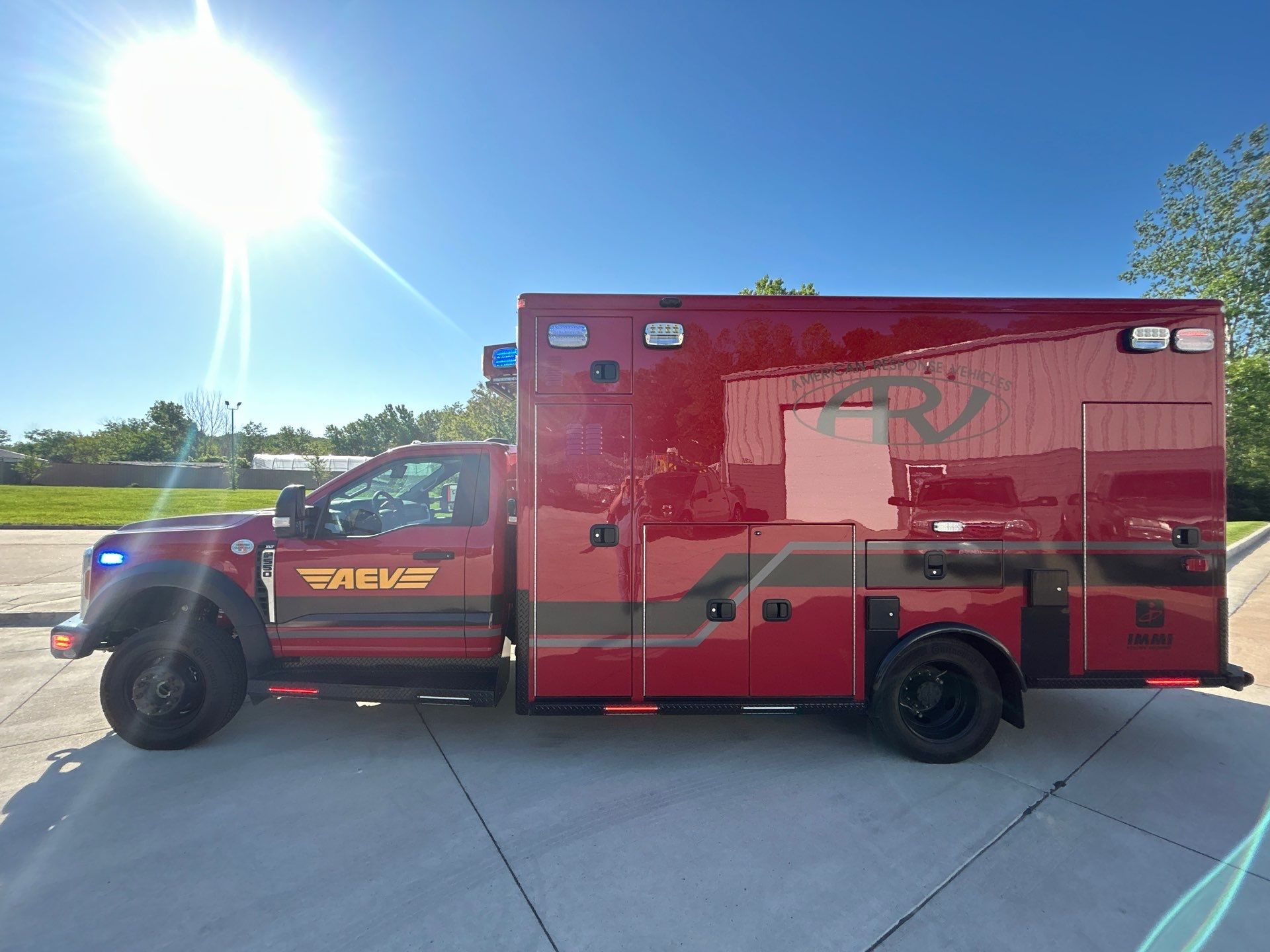

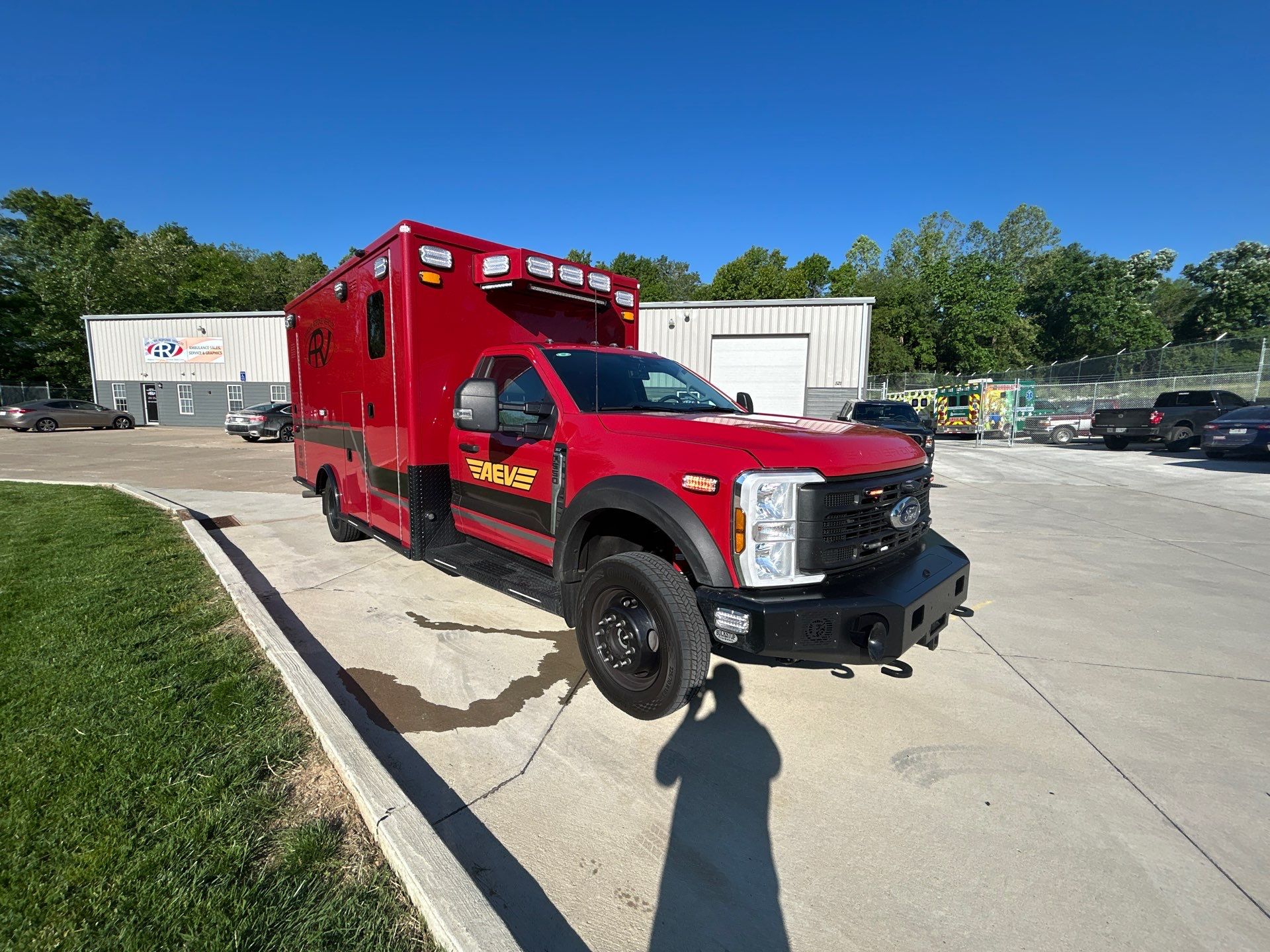

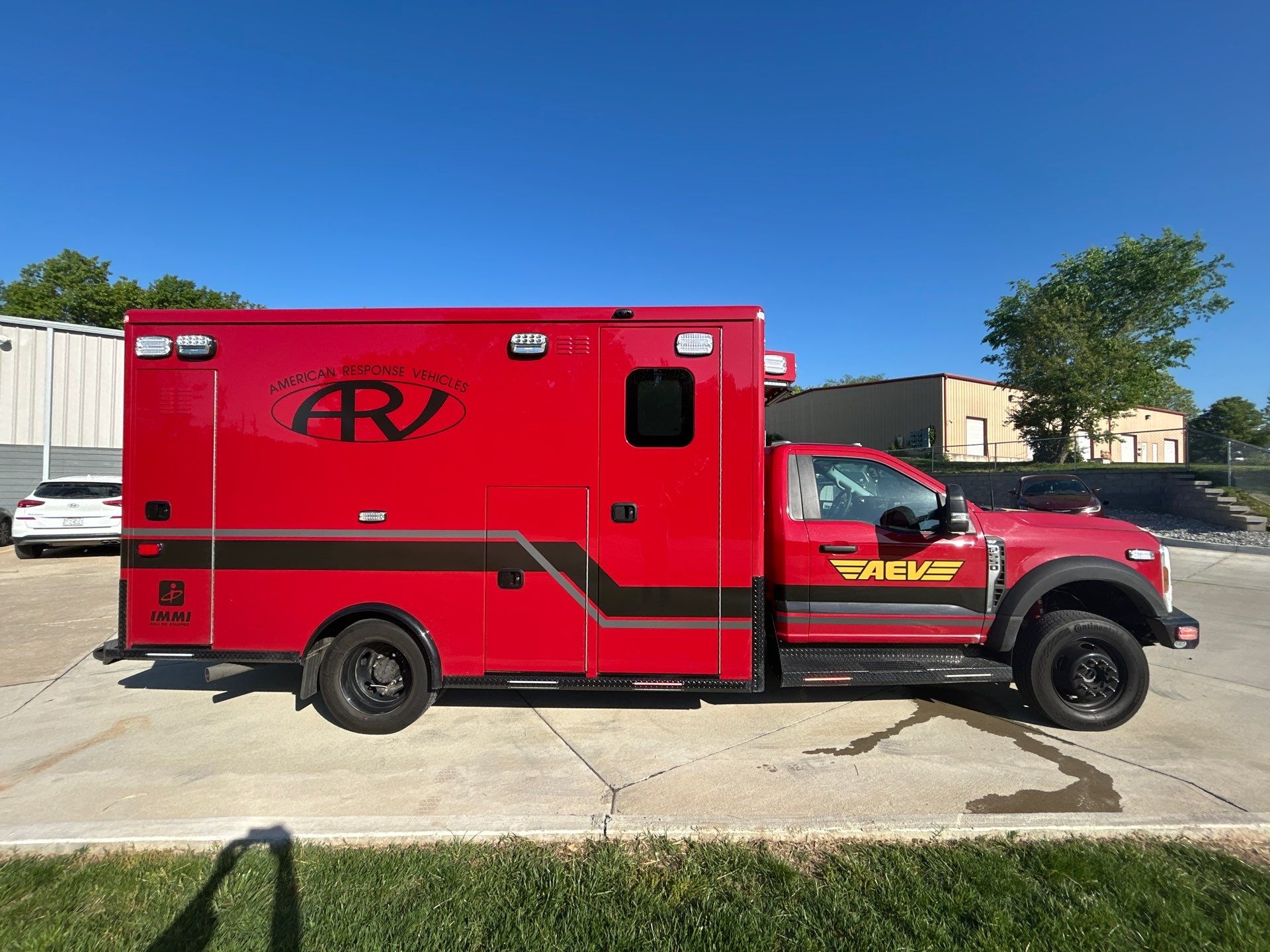

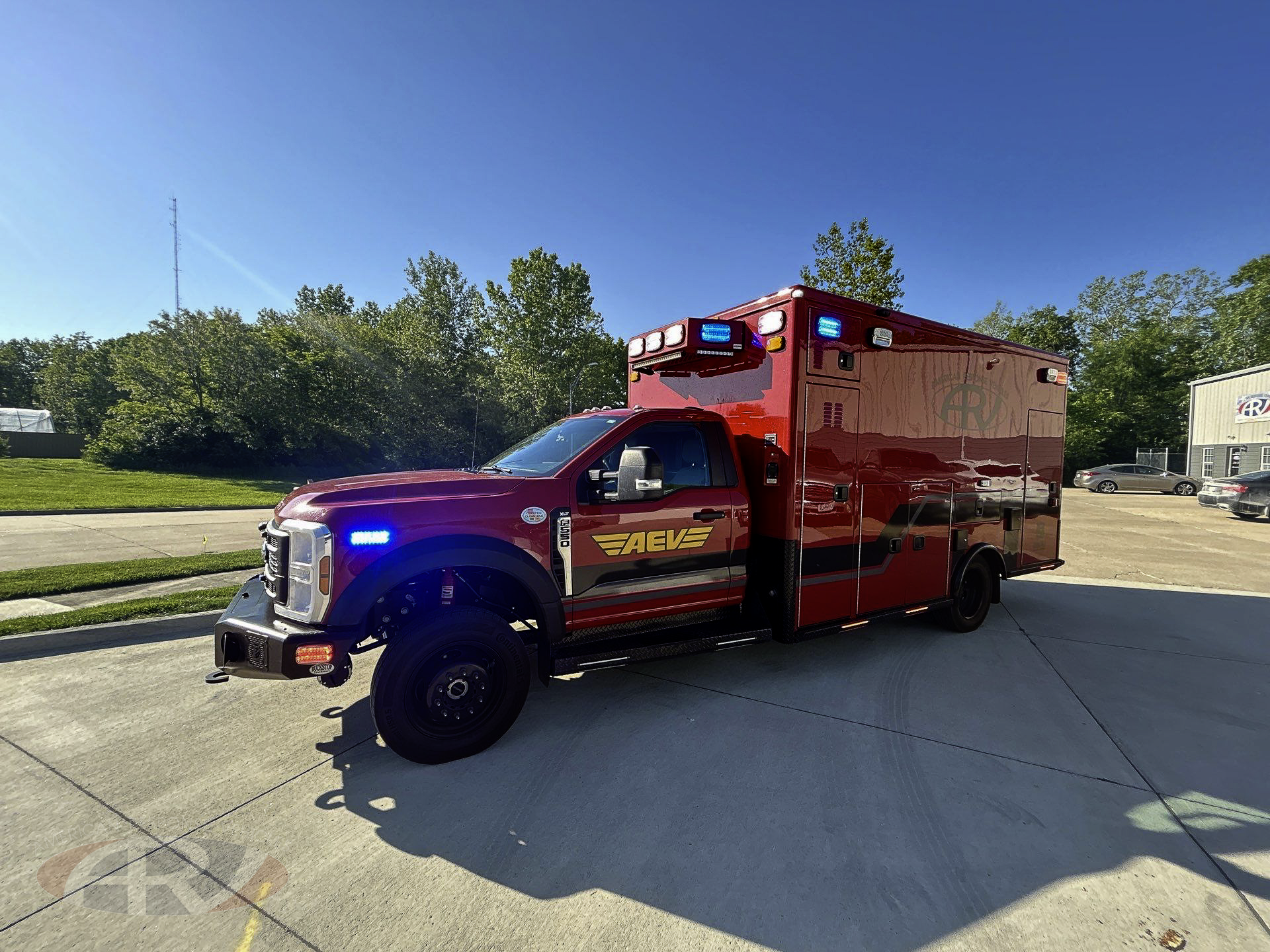

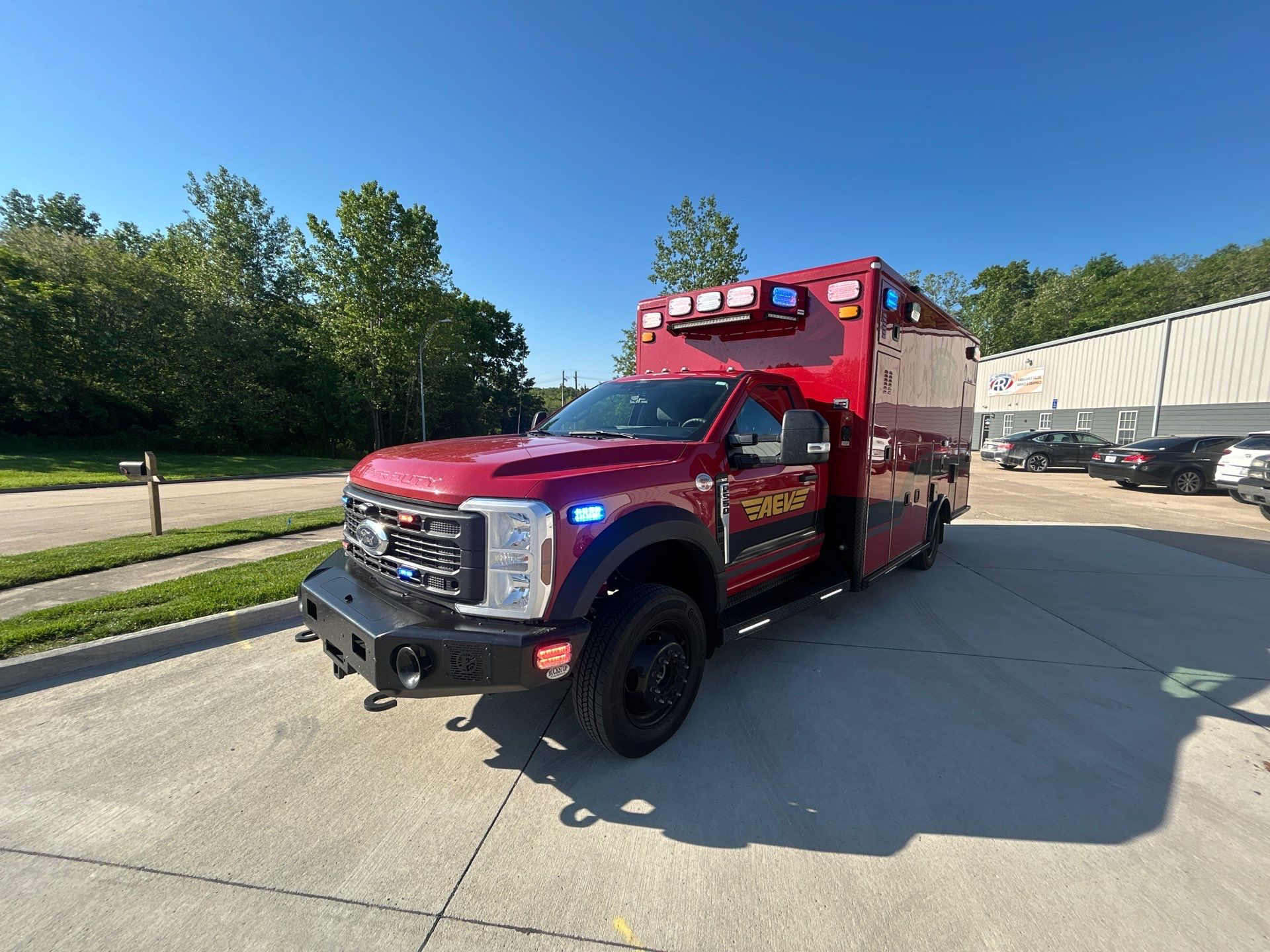

Ford F-550 4×4 • 6.7L Power Stroke Diesel
-

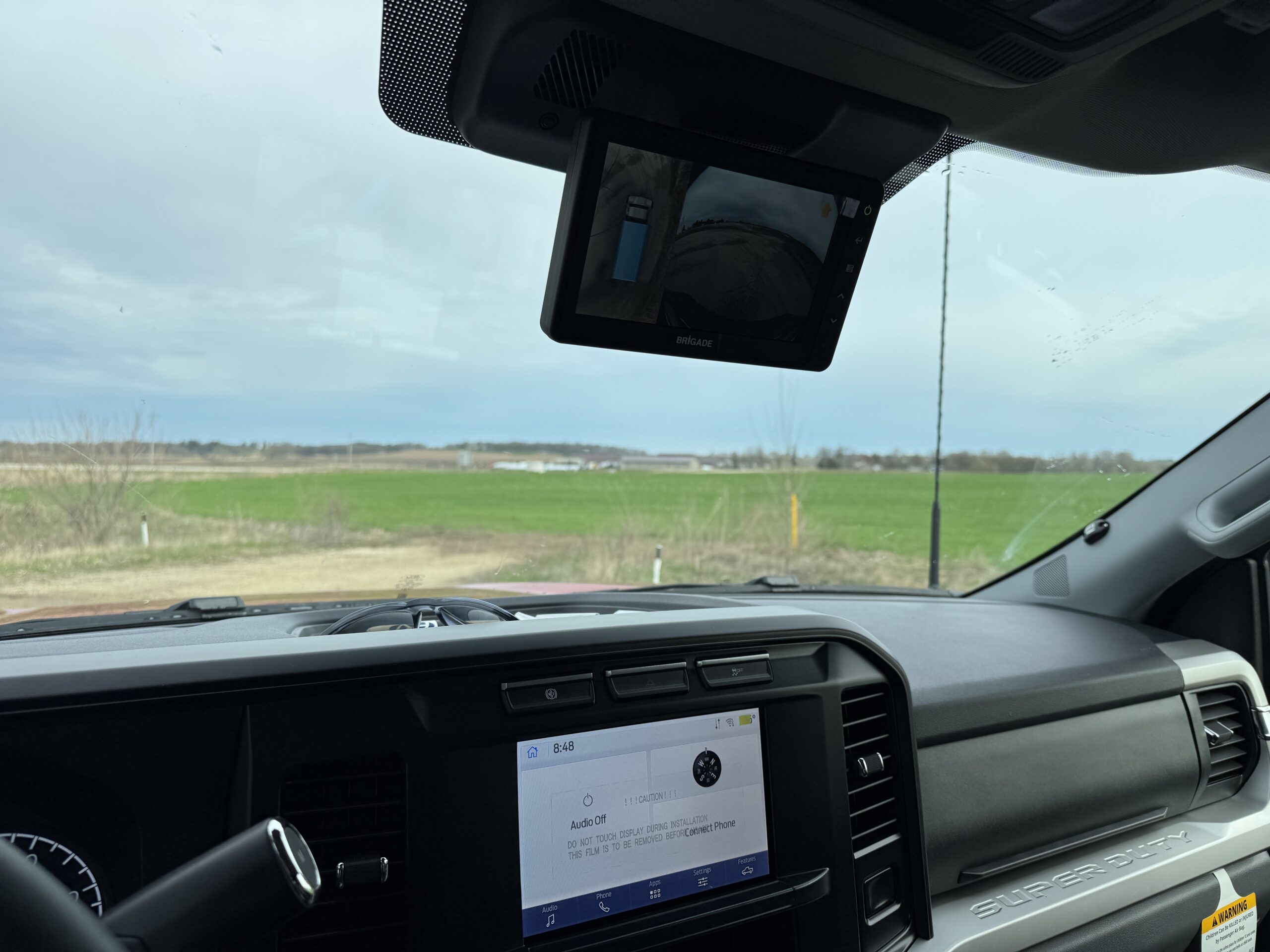

8″ cab display • OEM backup camera • running boards • dual-tone siren & air horns
-
Custom aluminum center console (flip-up armrest storage, illuminated cup holders)
-
TPMS • Secure Idle • BuckStop front bumper • powder-coat wheels
Conversion/Storage
-

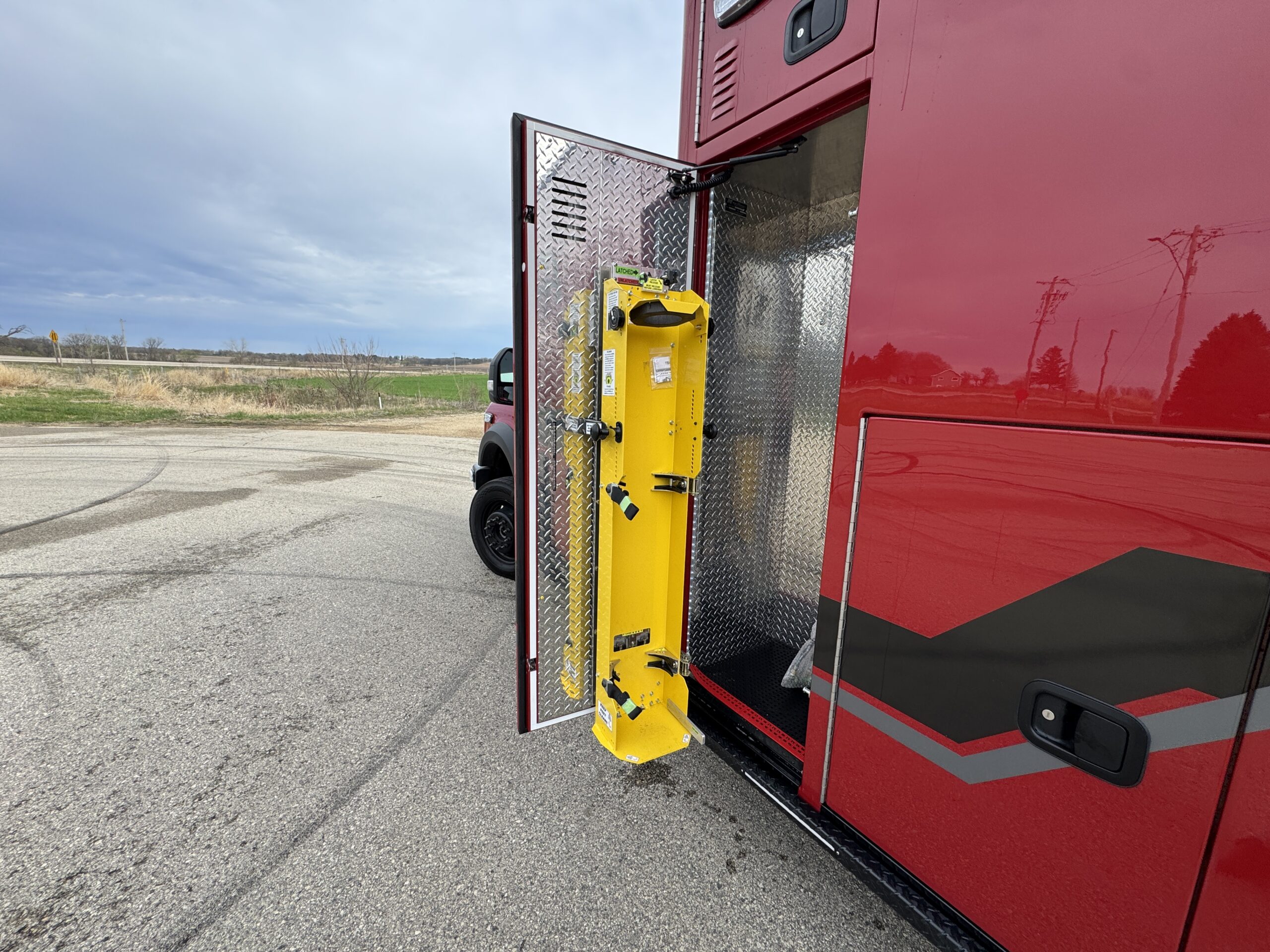

Oxygen tank lift (street-side forward door)
-

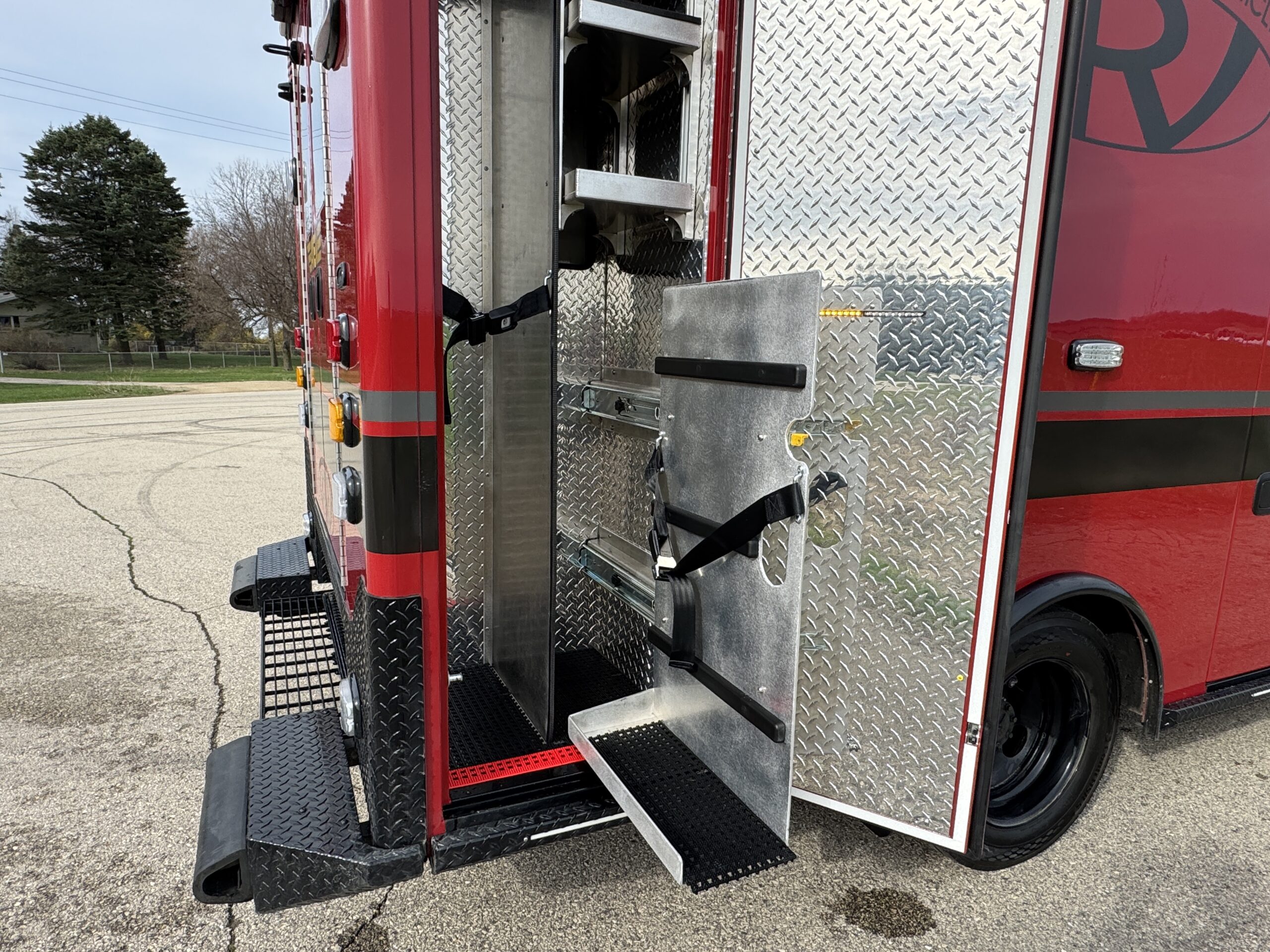

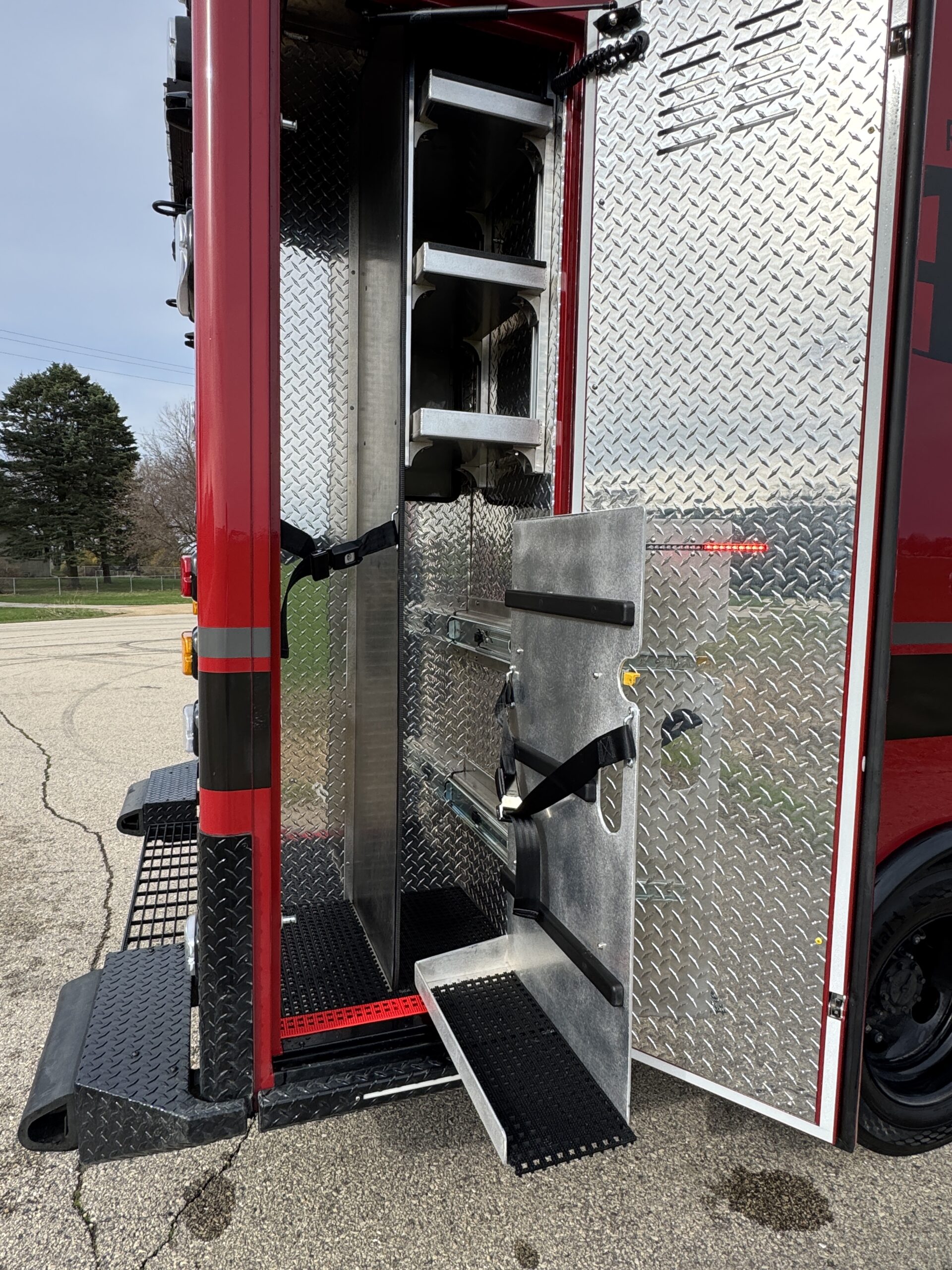

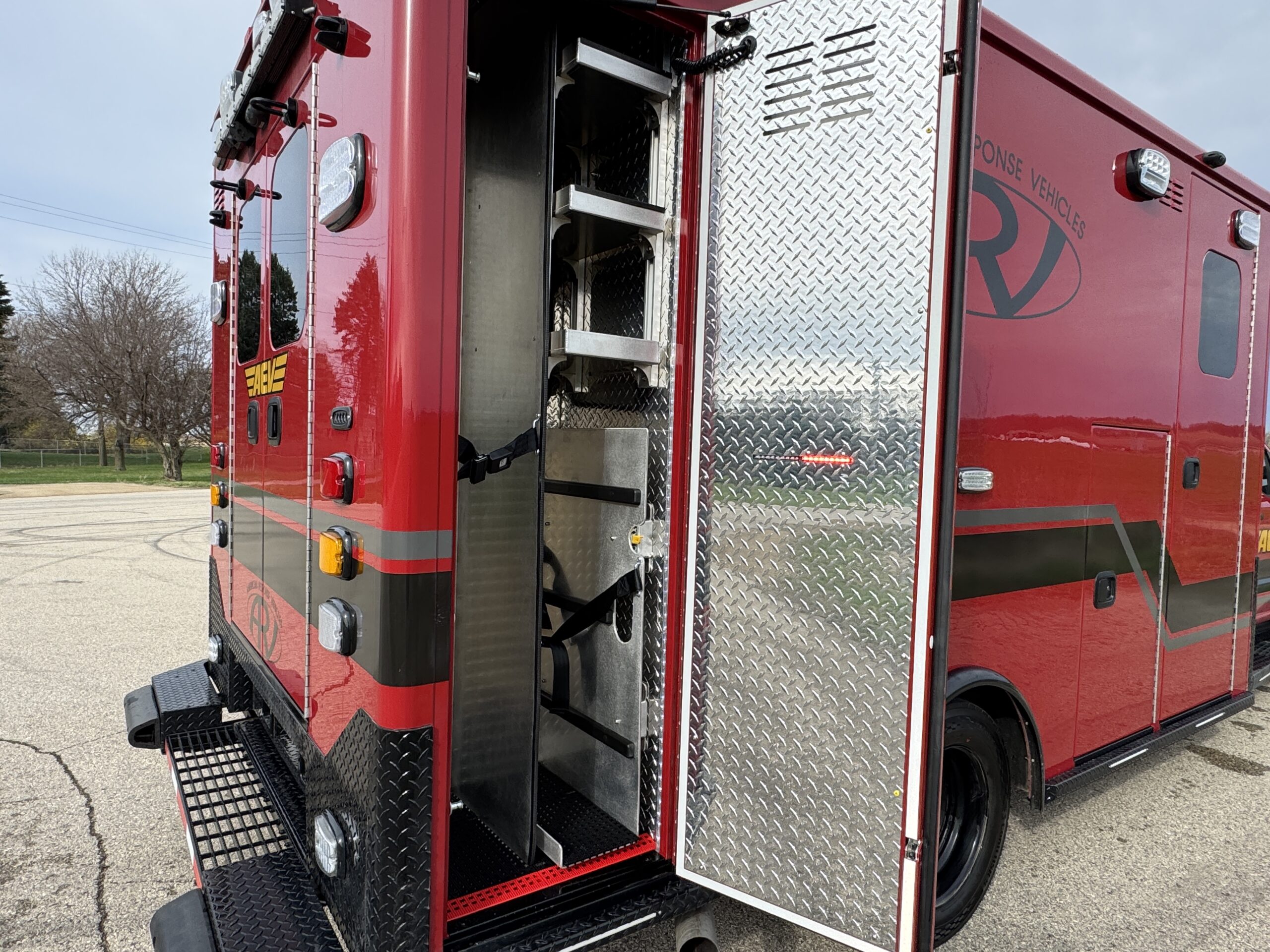

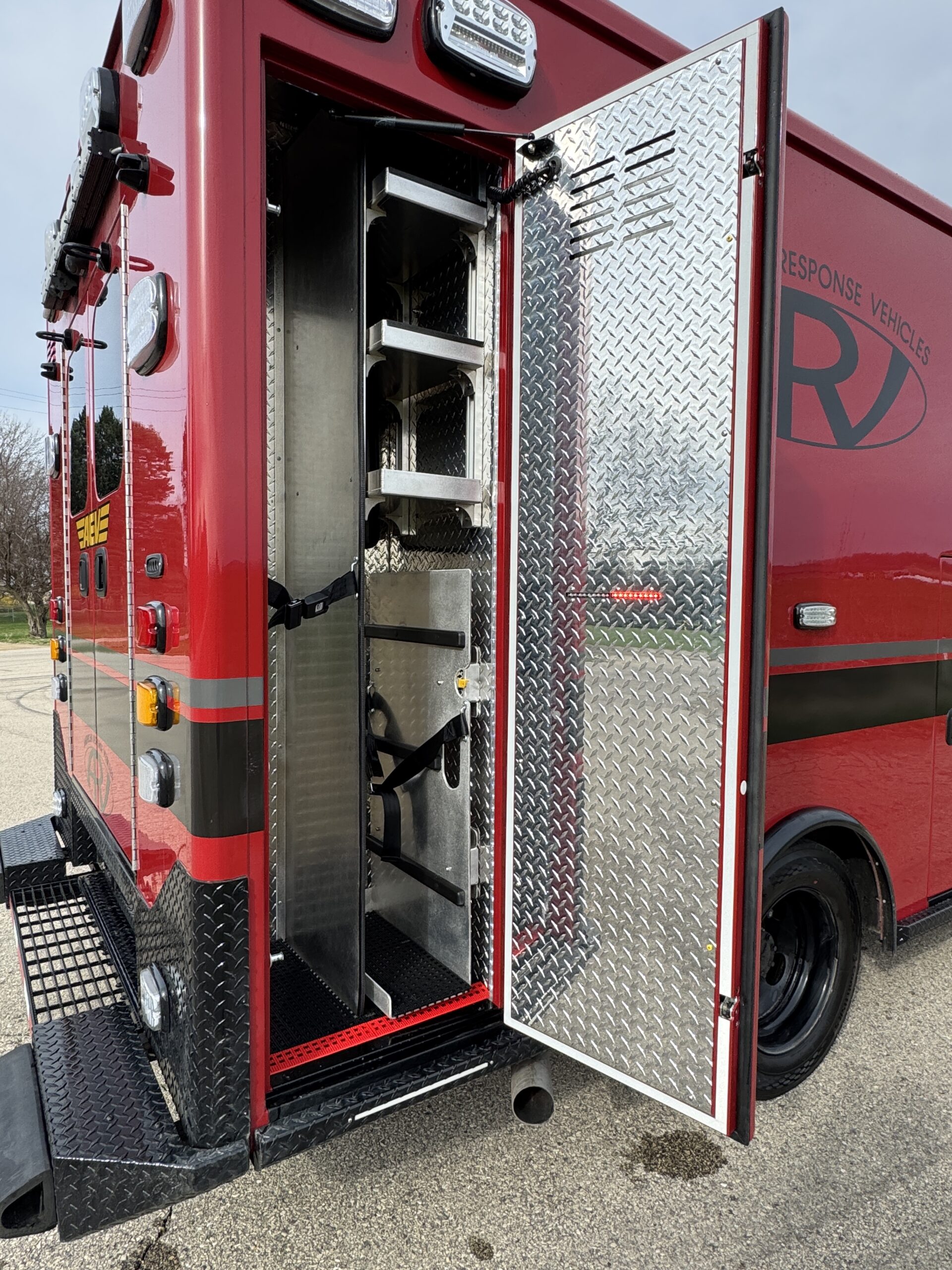

Stair chair on slide-out tool board (curbside rear)
-
SCBA & gear storage • recessed rear flip-up step • rear docking bumpers
-

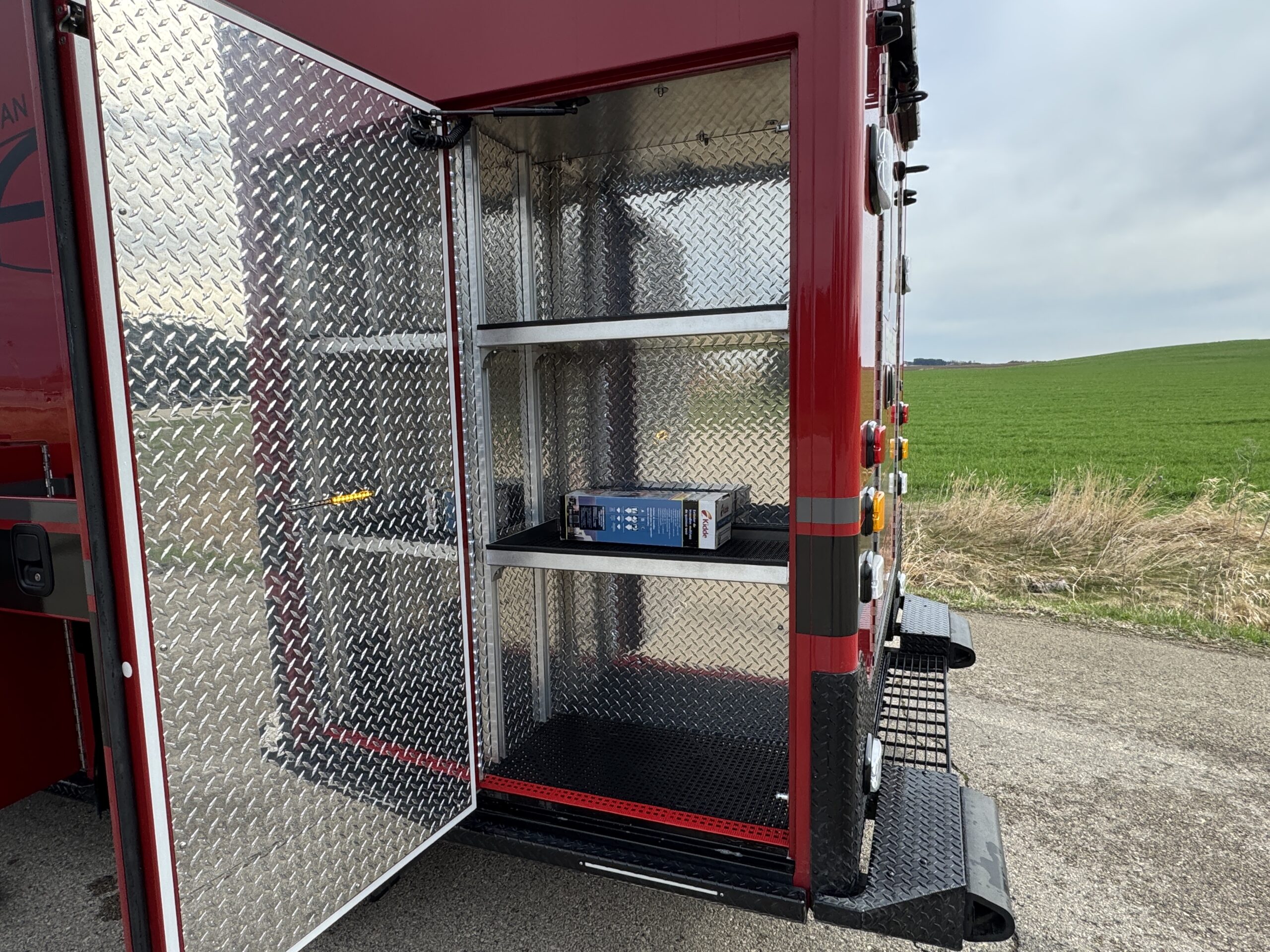

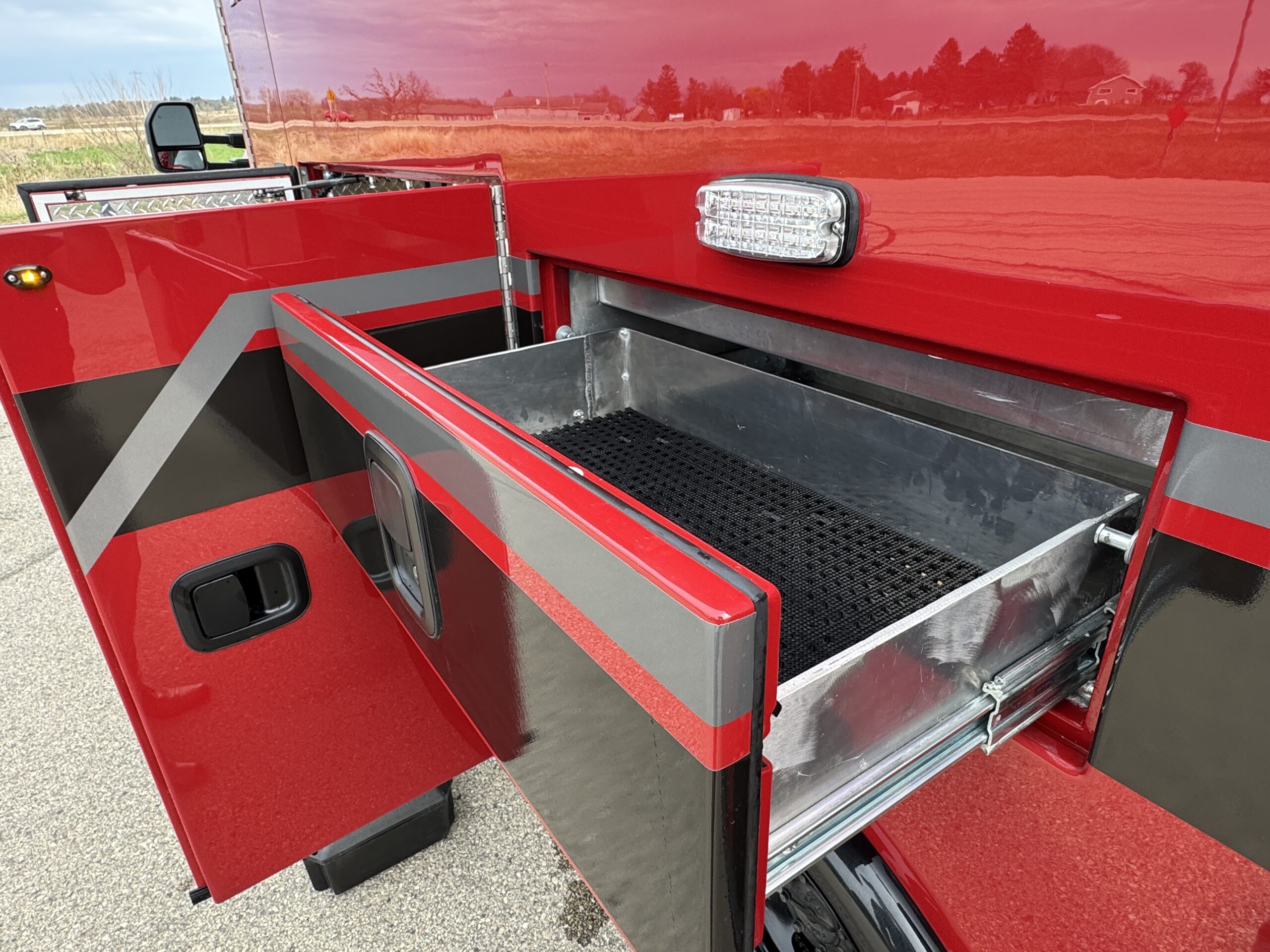

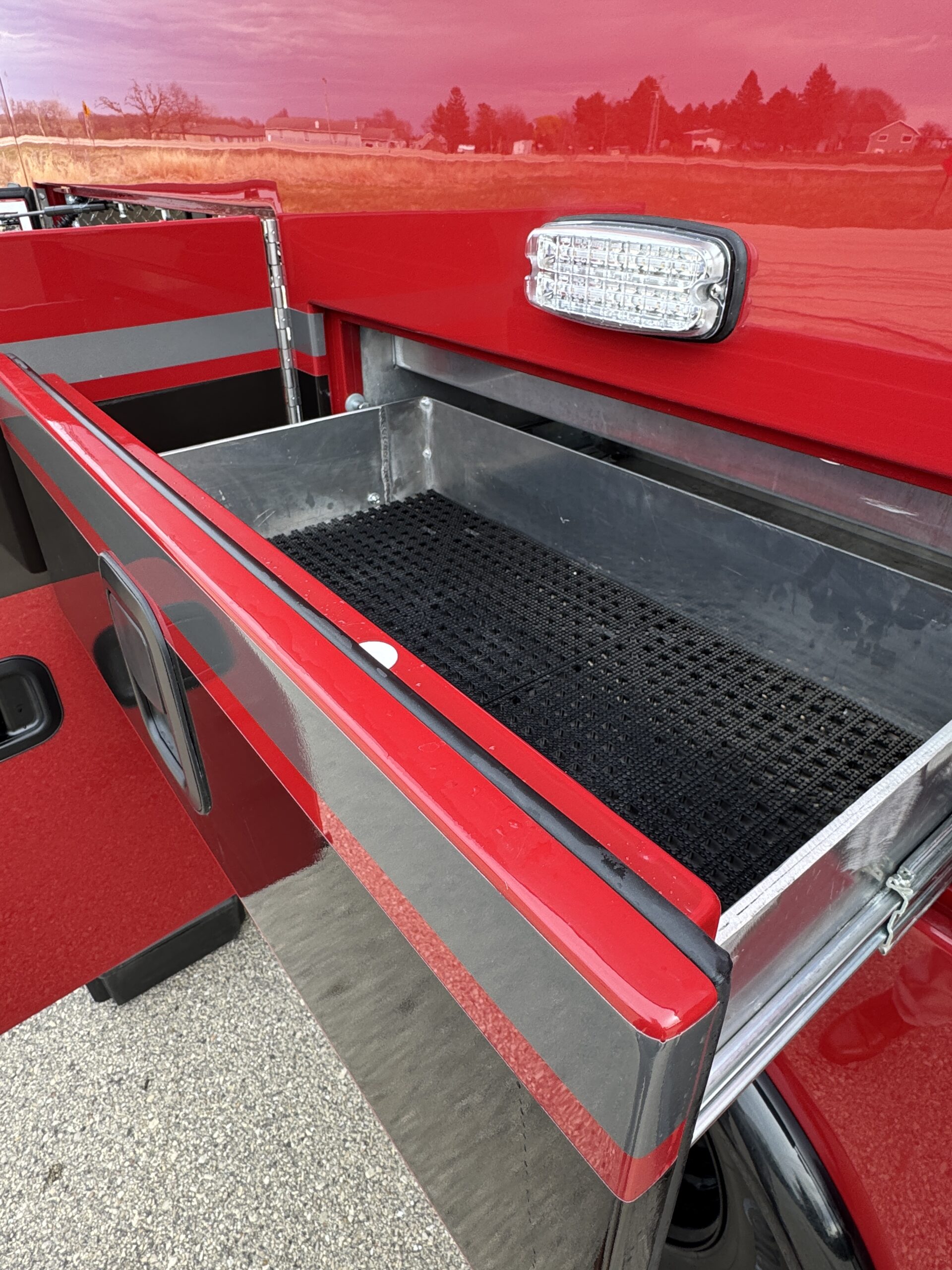

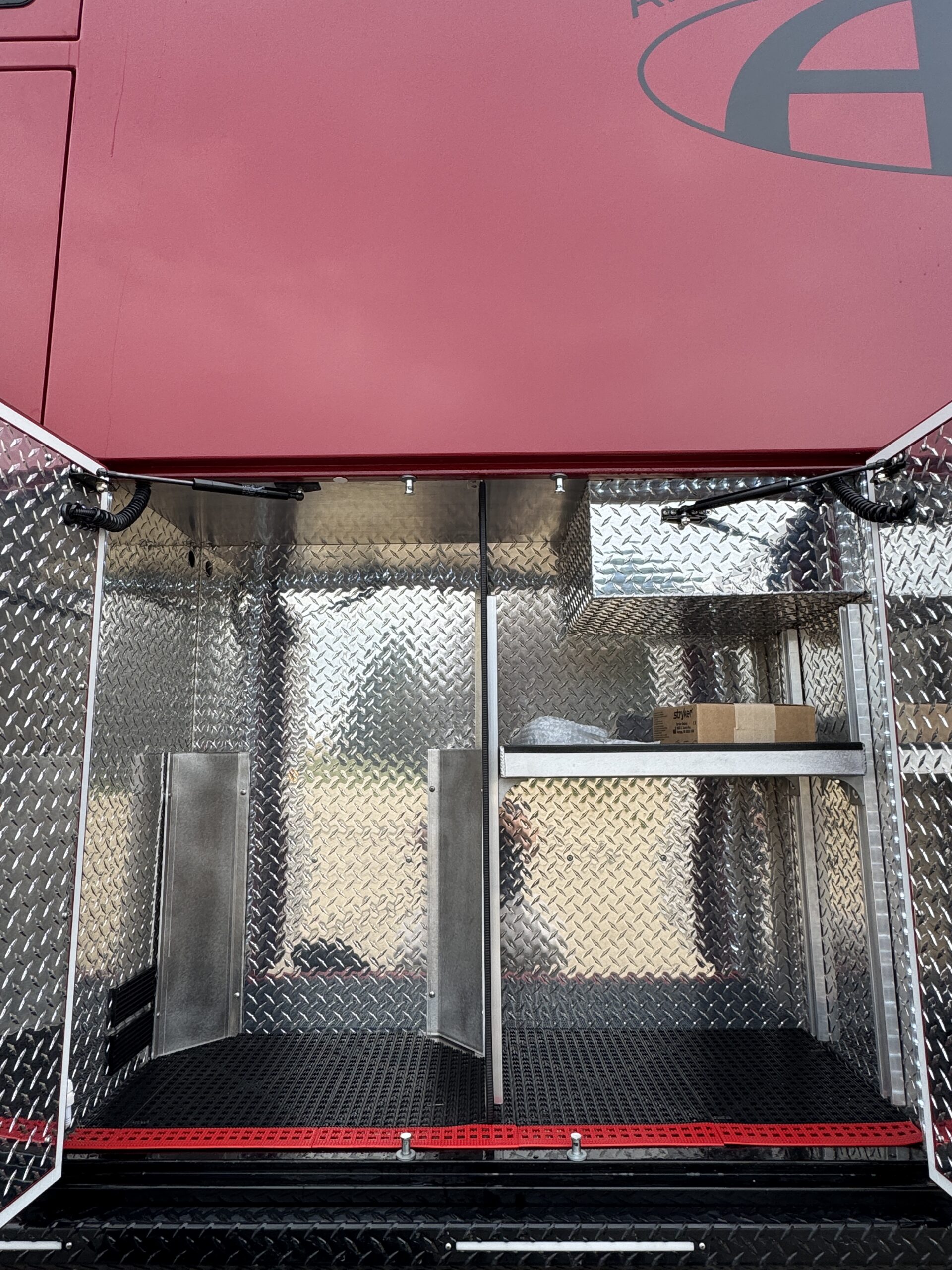

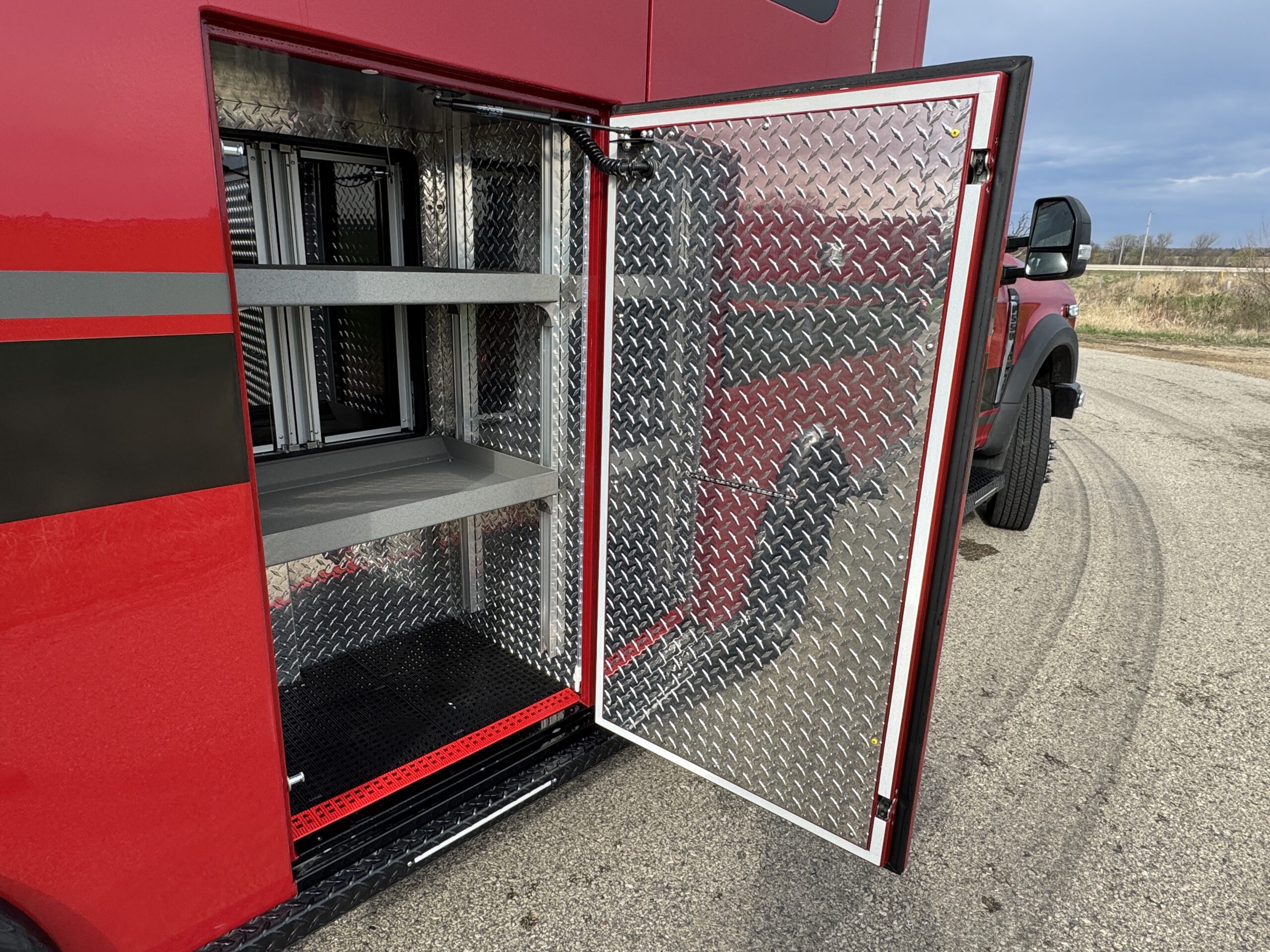

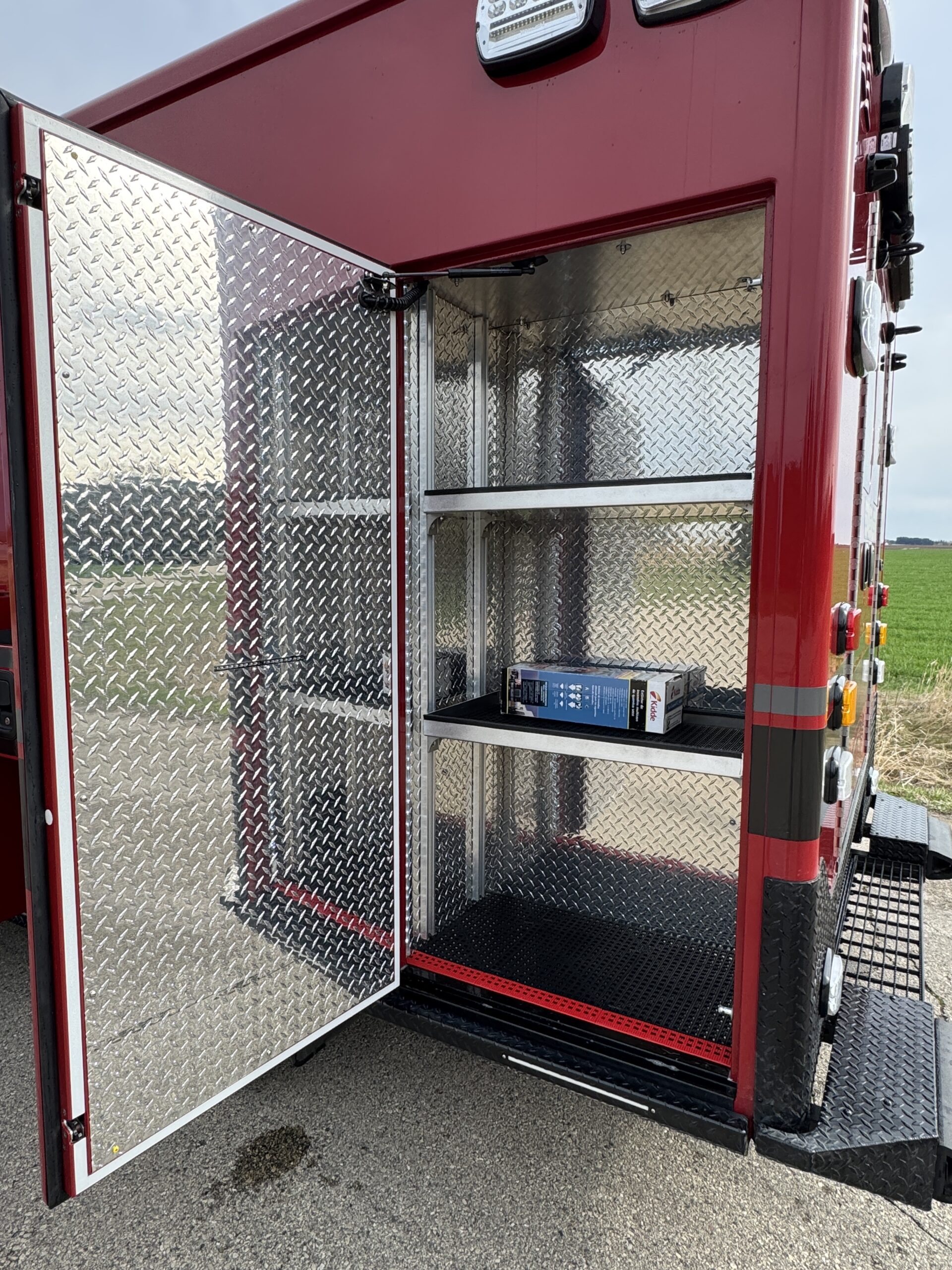

Black Dri-Deck w/ red beveled edges in all exterior compartments
-
Powder-coat trim work • body drop • M1A
HVAC & Insulation
-
External condenser • 2nd A/C compressor • digital thermostat
-
Sound deadening • step-well insulation • Armacell insulation
Exterior Lighting
-
LED warning & scene package with (6) Whelen M9EZ scenes
-
FireTech brow lights (below Arctic Wedge)
-
Skirt rail, underbody & compartment LEDs
-
Amber/red door-open warnings
-

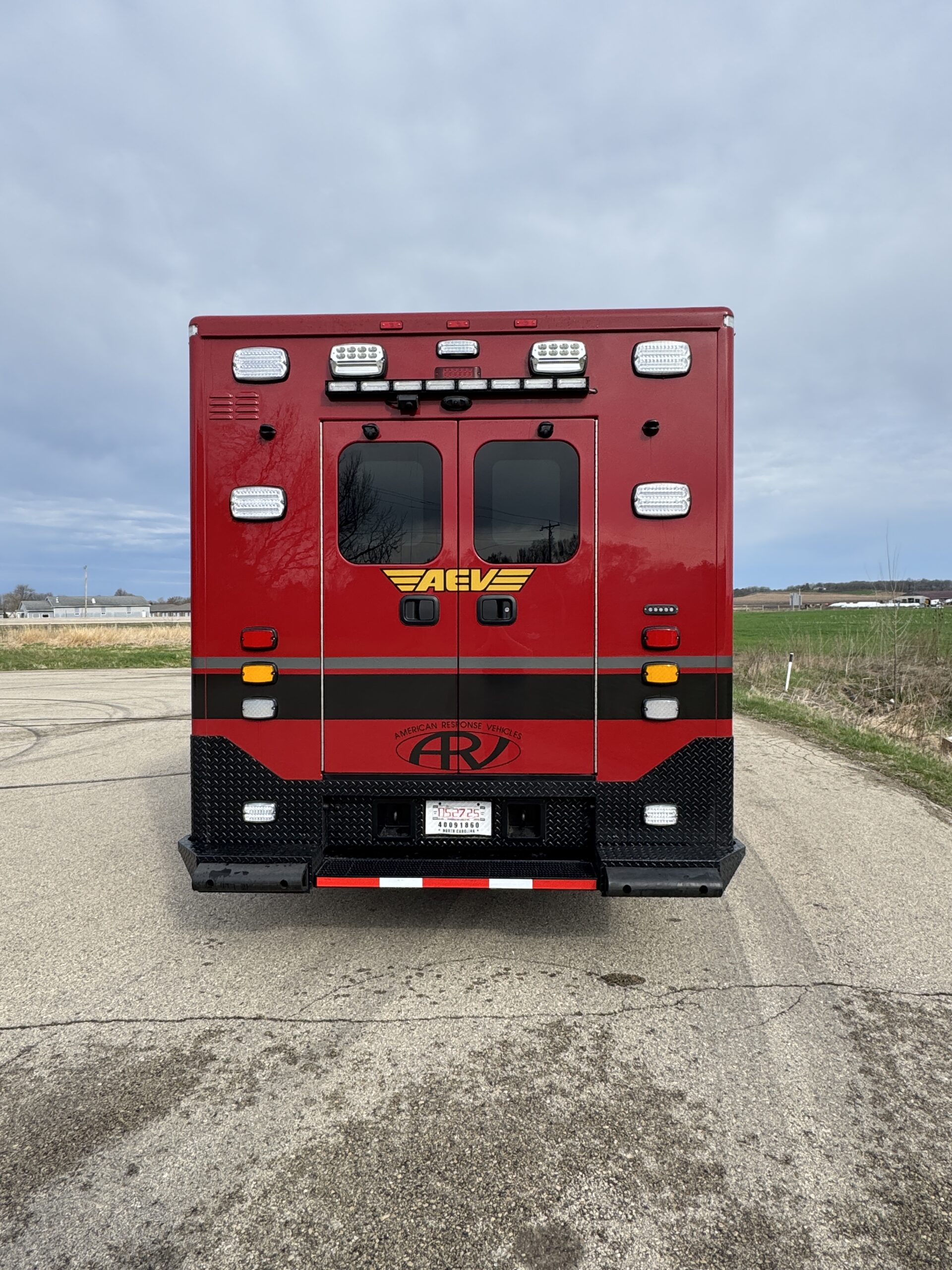

(8)-lamp Whelen amber traffic advisor above rear entry doors
Electrical & Electronics
-

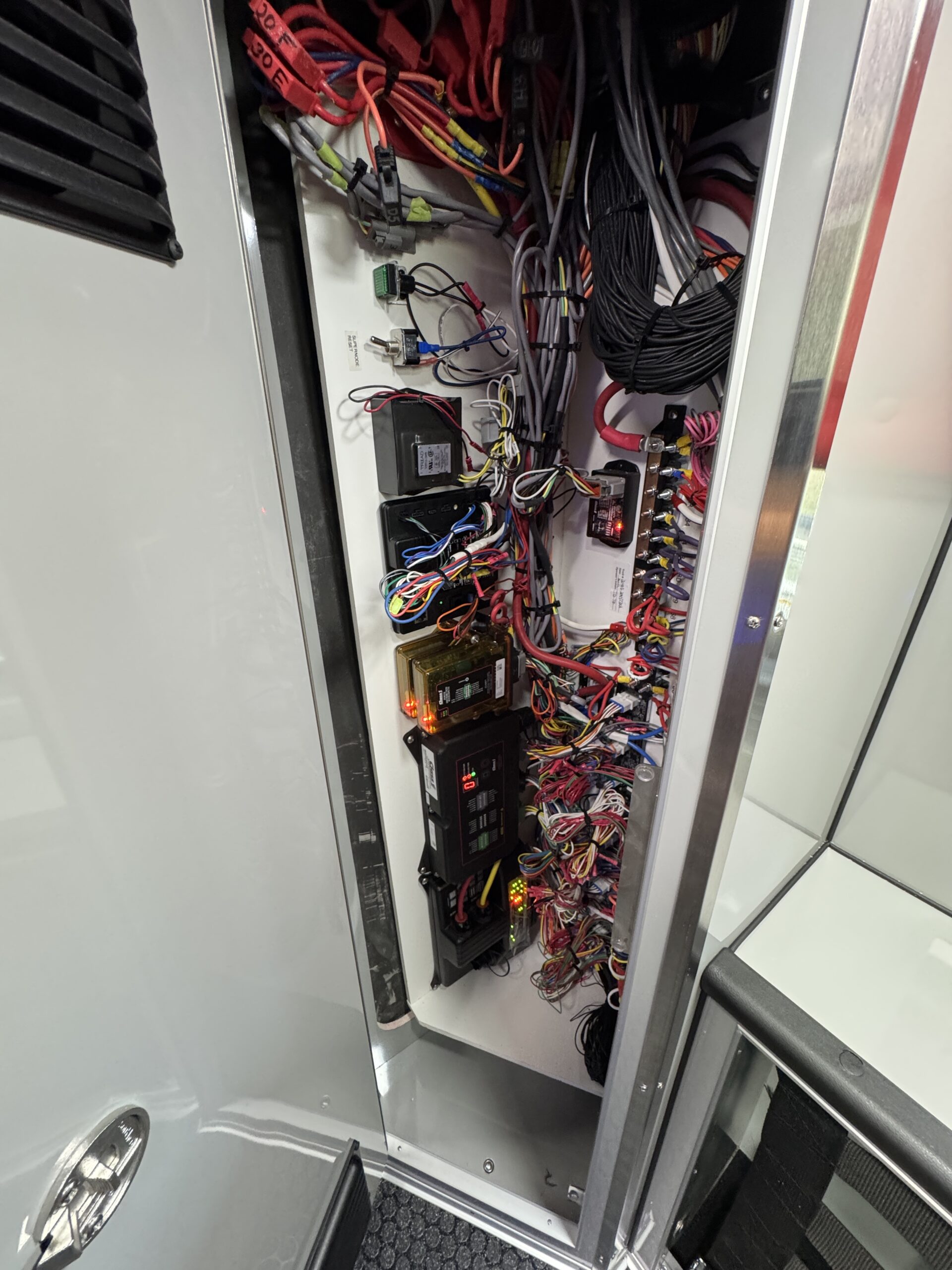

Class 1 LX1 multiplex system
-

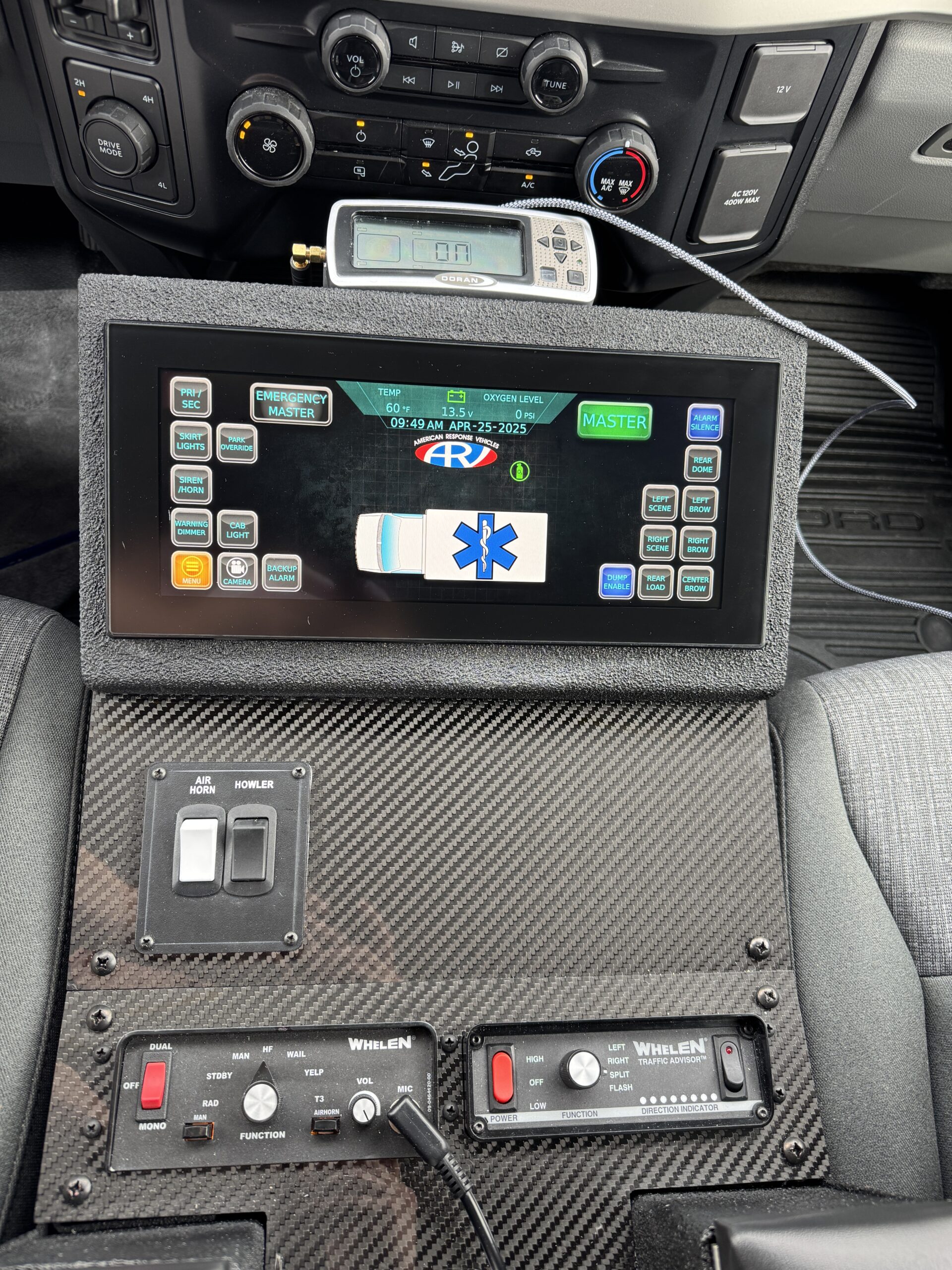

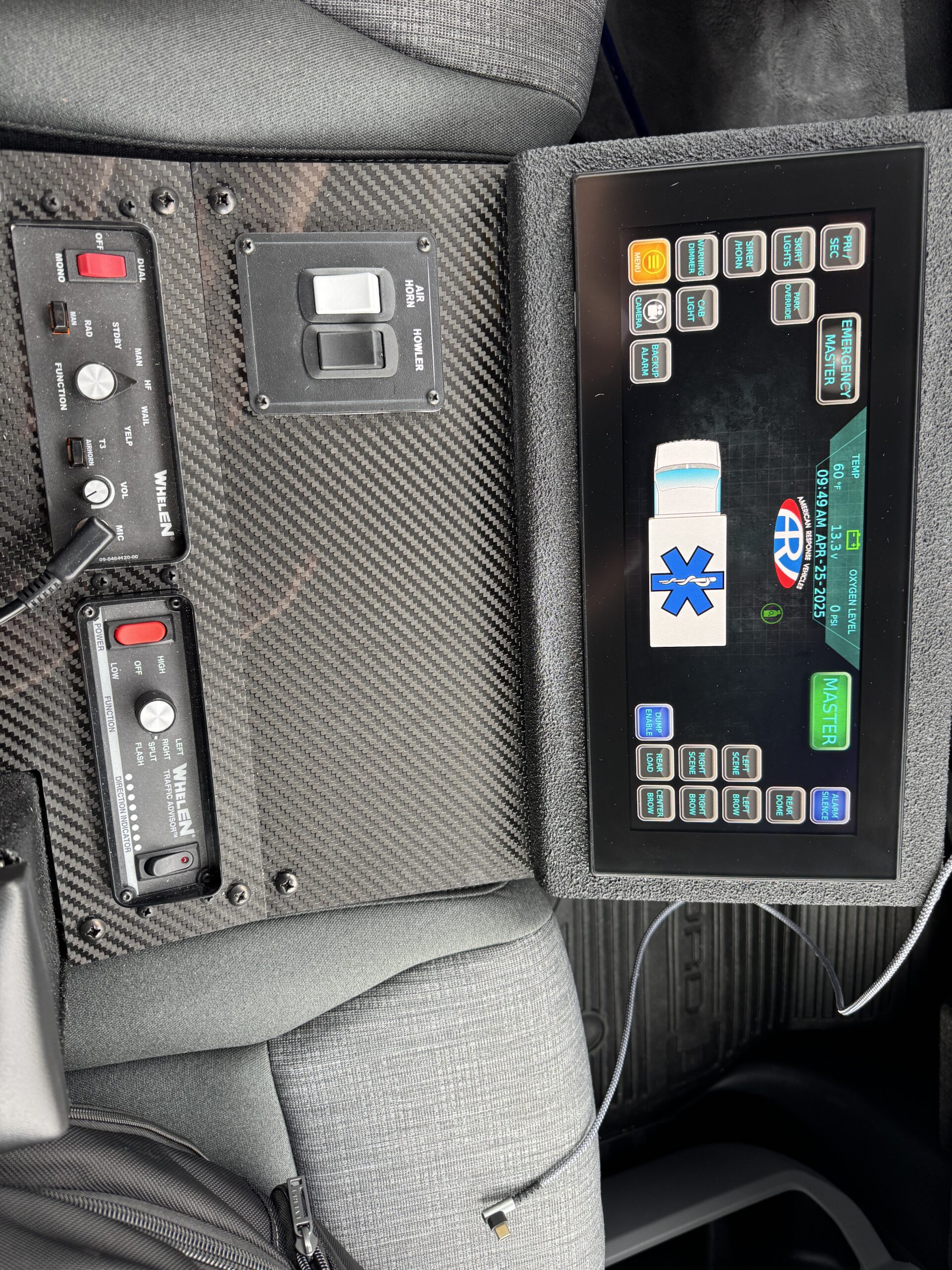

Class1 LX1 UV 1200 cab display + (2) LX1 UV 800 module displays
-

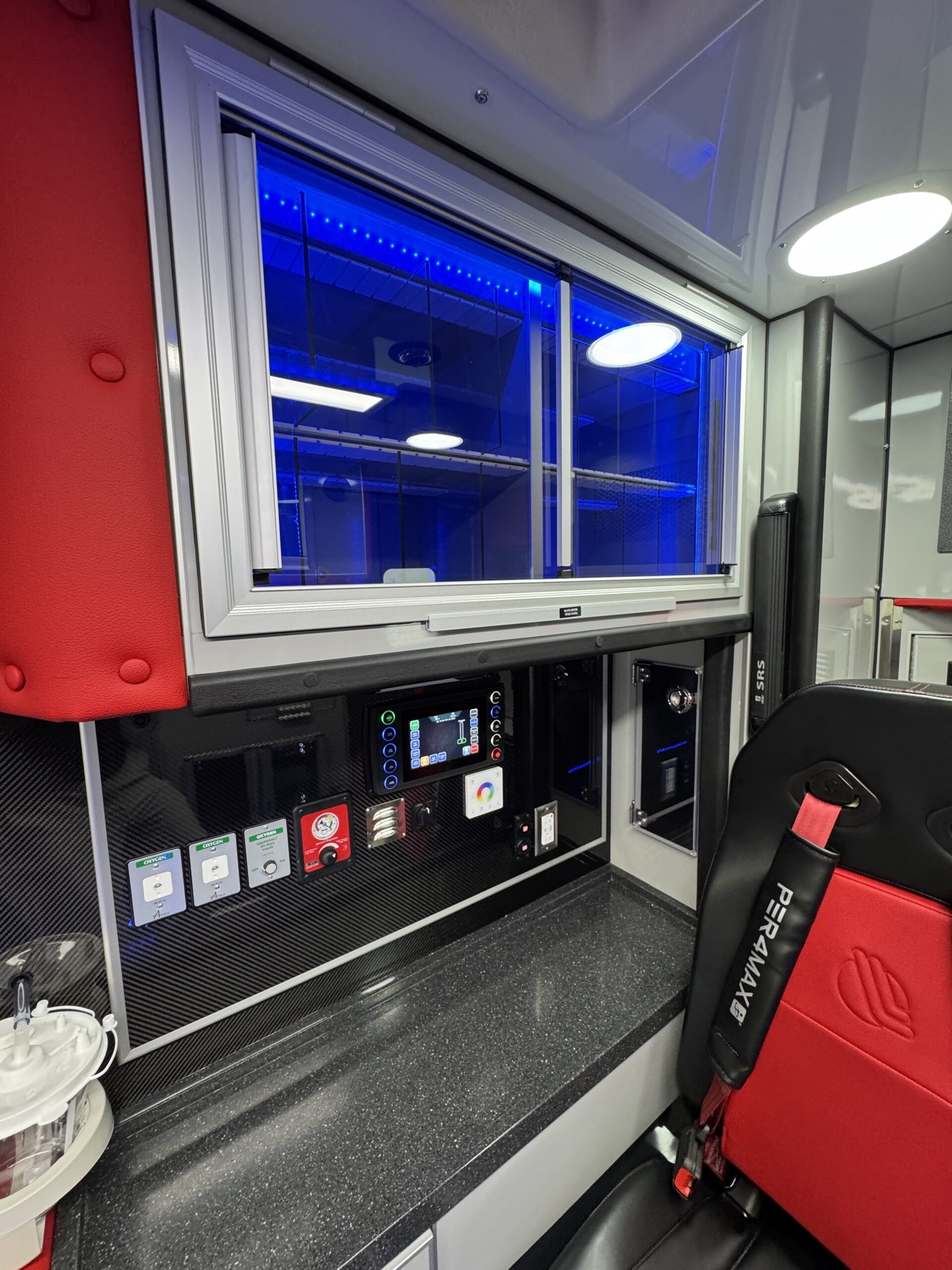

SmartTouch switches (foot of squad bench)
-

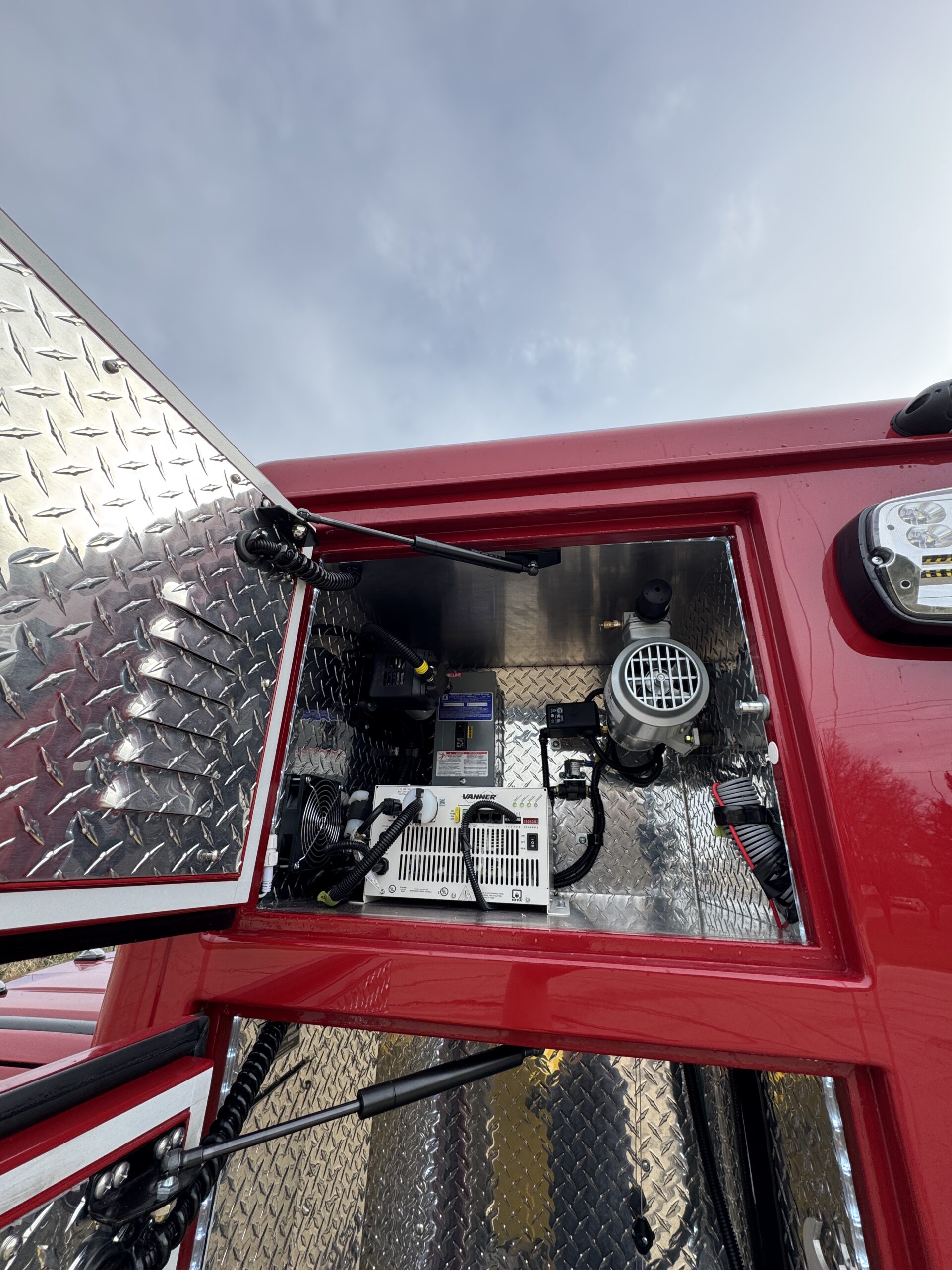

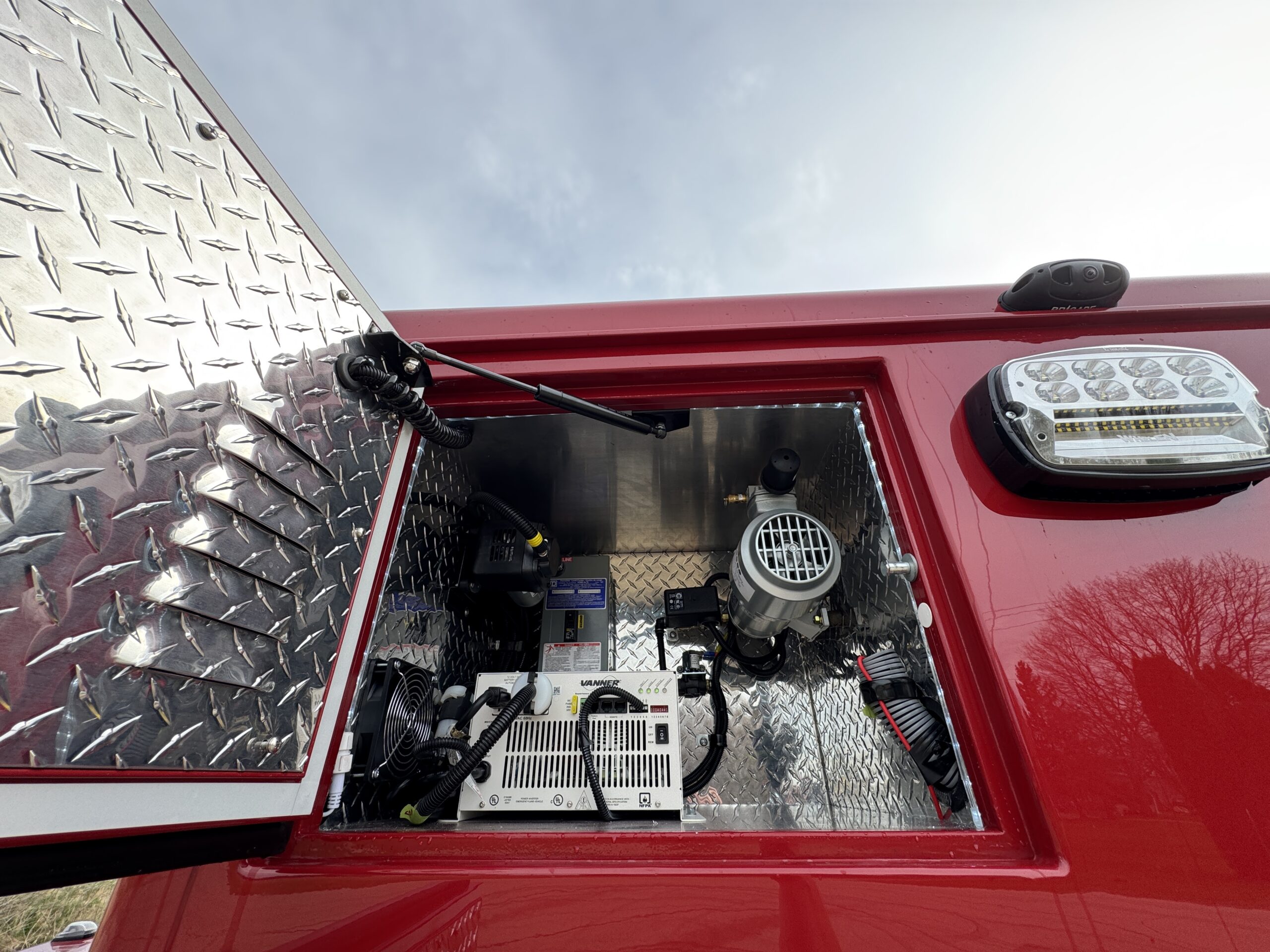

Vanner LifeSine • 20-amp auto-eject
-

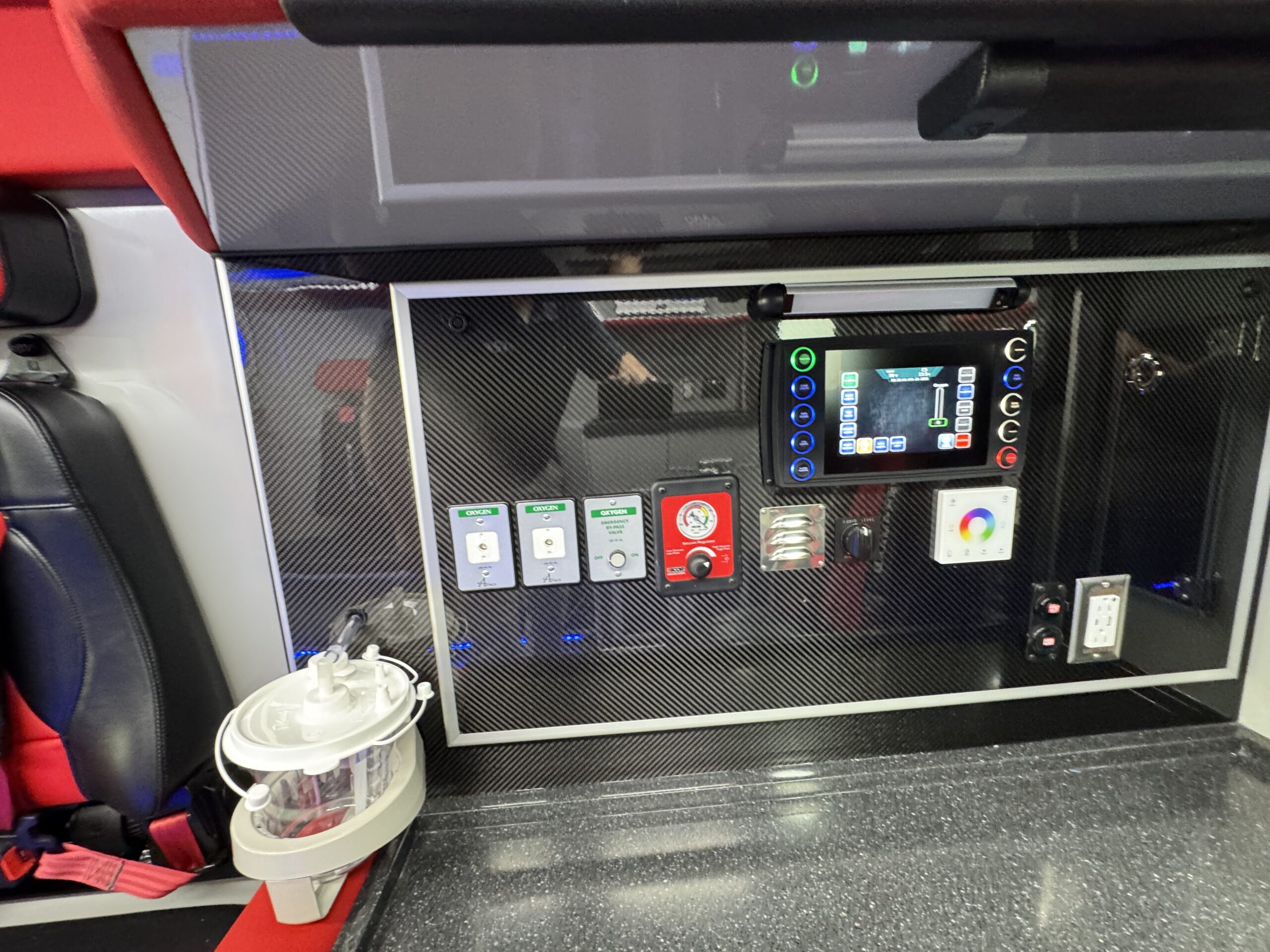

Electric O₂ w/ digital constant gauge via multiplex + manual bypass
-
110V outlets with USB-A & USB-C
-
Power door locks • remote keypad • hidden unlock switch
-
Backup camera • patient compartment camera • turn-signal cameras • privacy windows
-

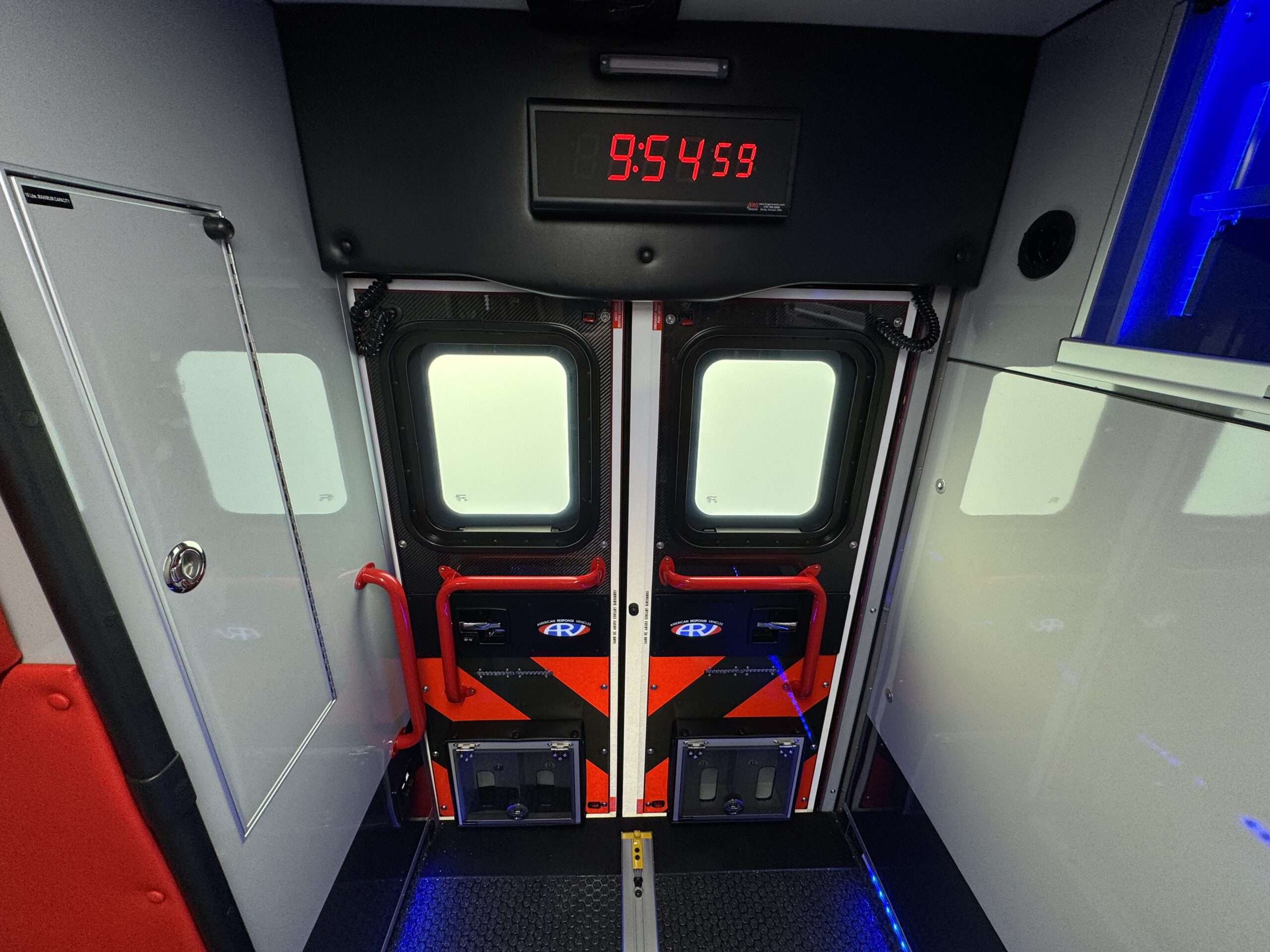

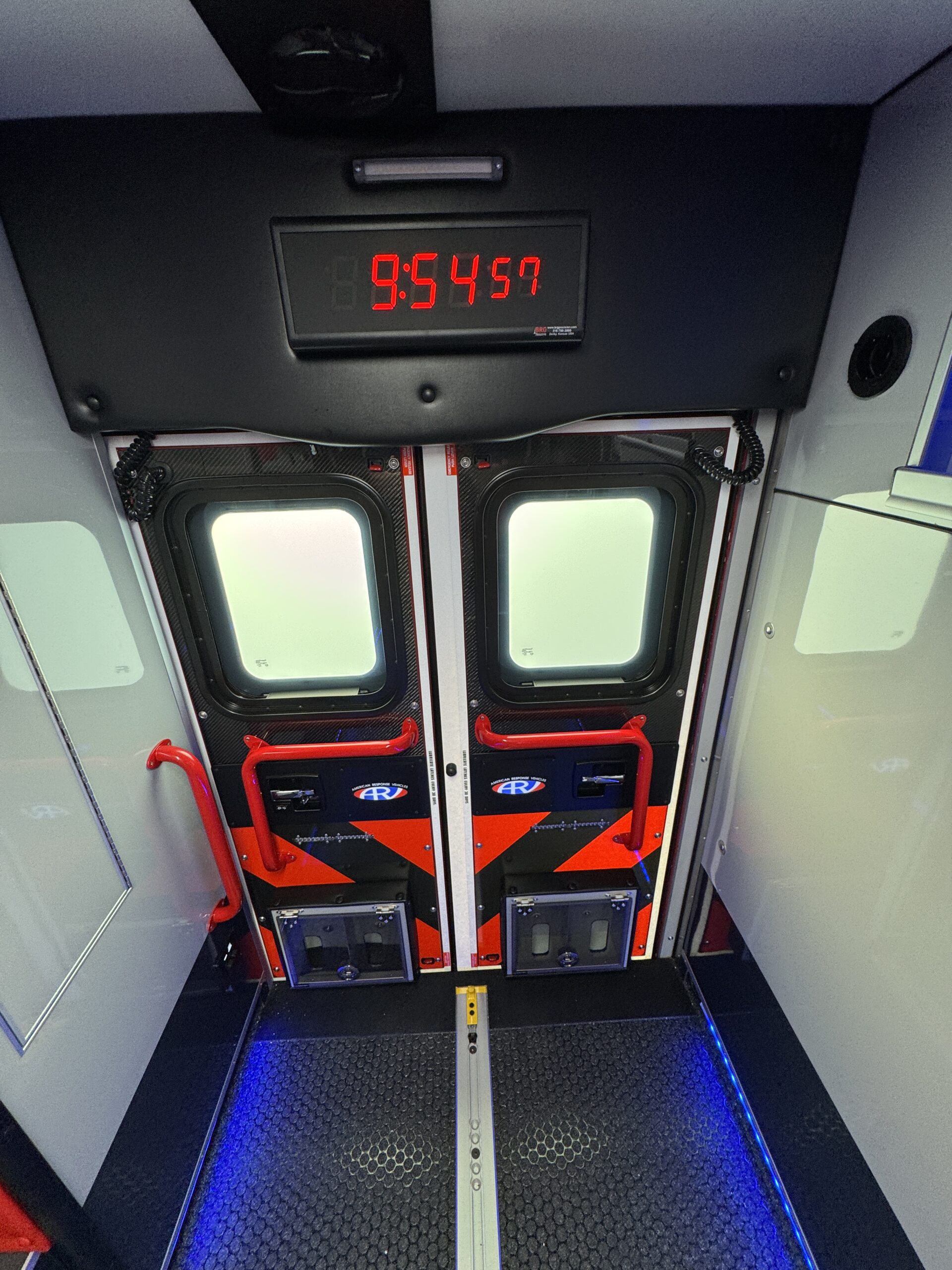

Digital clock (above rear door panels)
-
Patient compartment brake/turn indicator (above rear entry doors)
-
Rear stereo speakers with volume control
Safety
-
RollTek patient-compartment airbag system
-

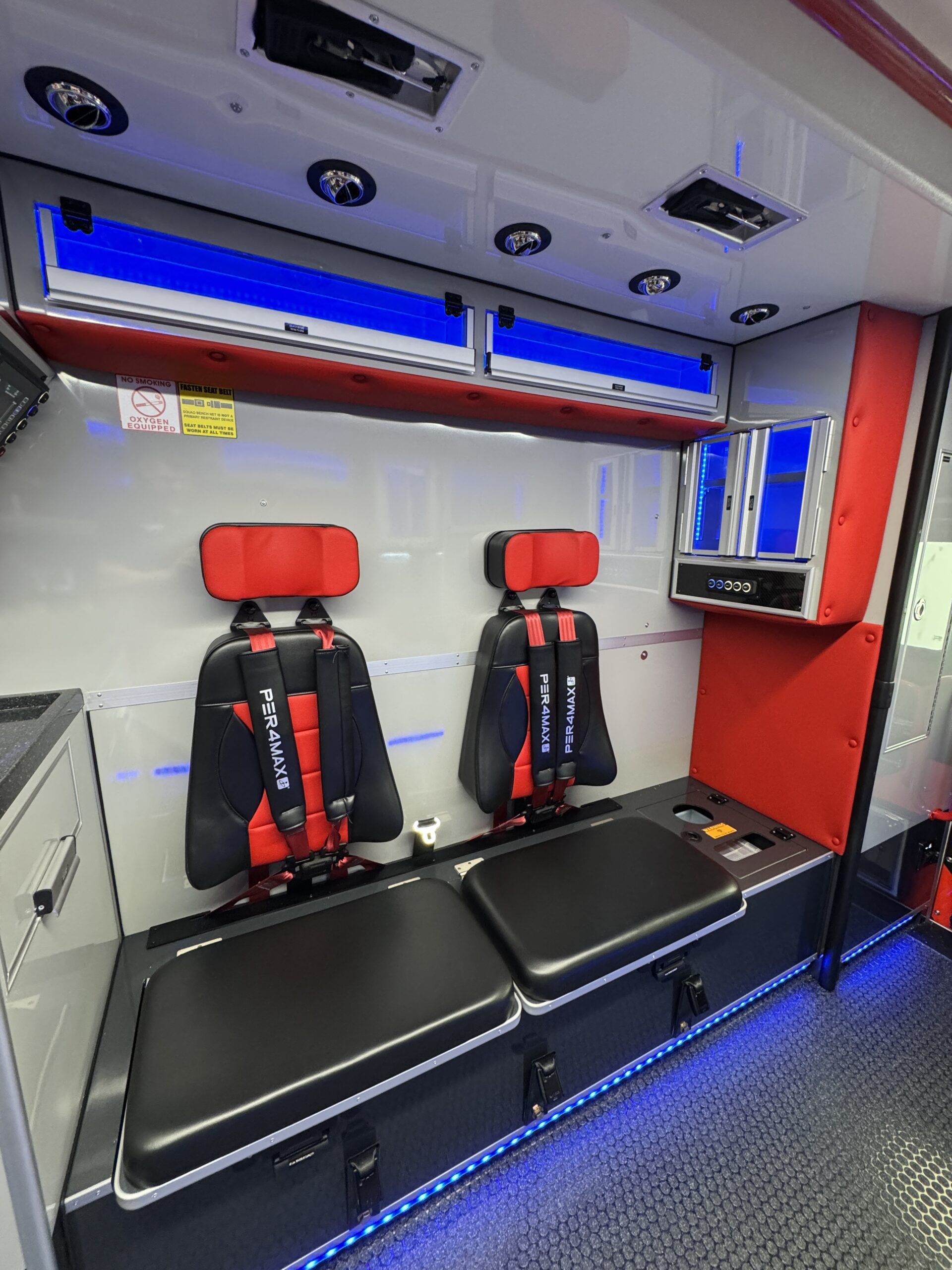

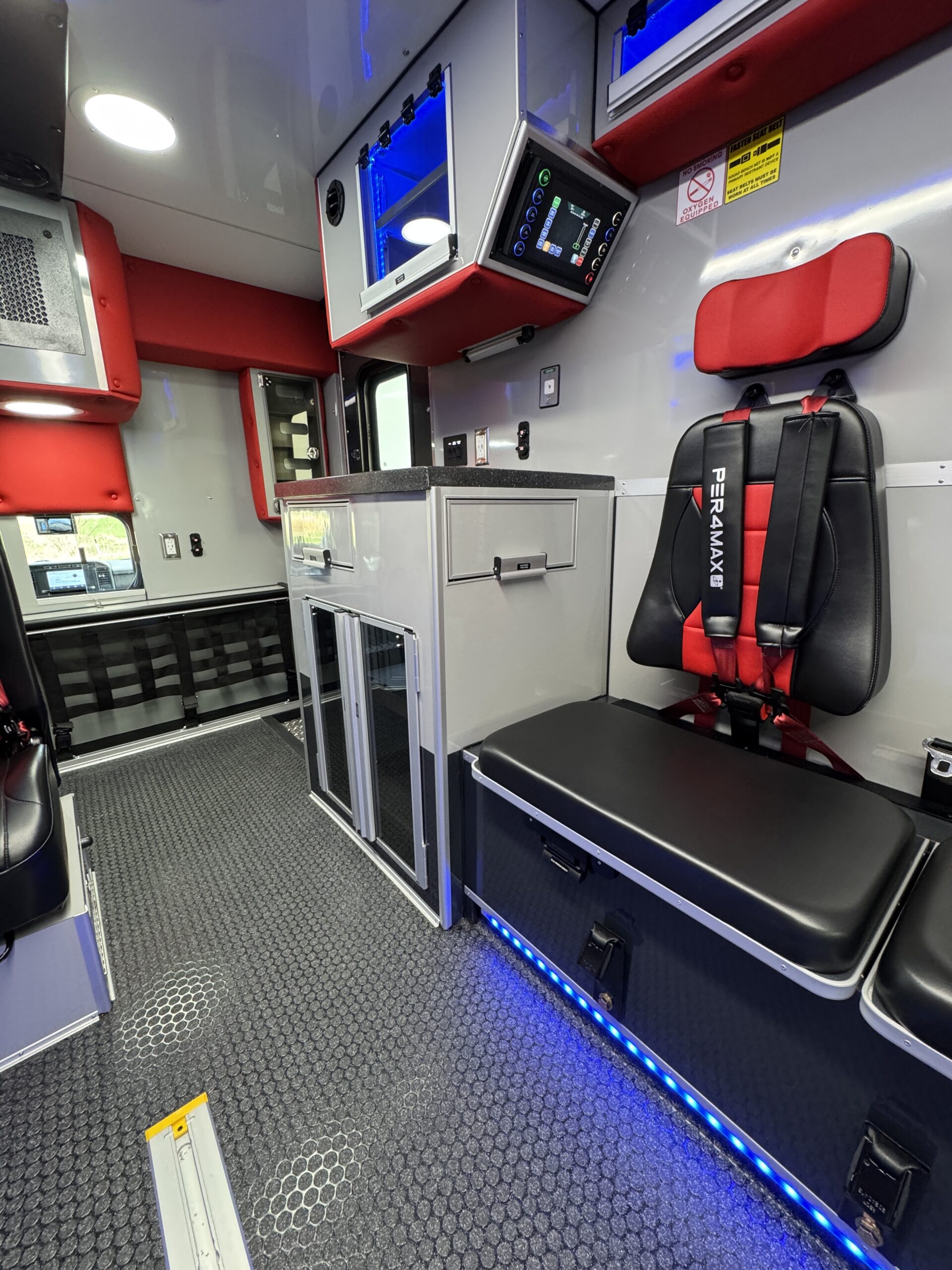

Per4Max restraints
-

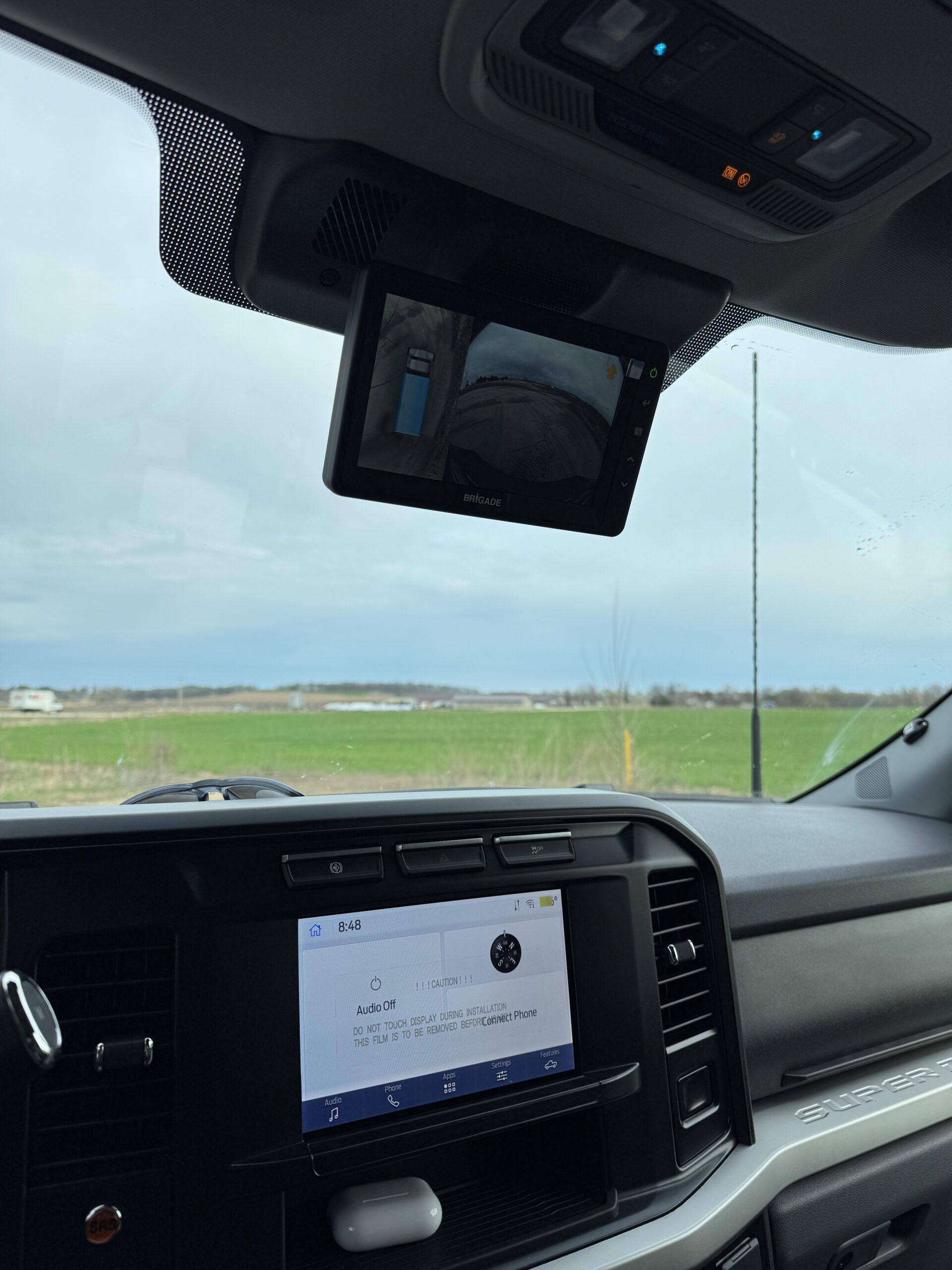

Brigade Backeye 360° with AI camera system
-
Buell Critical Duty air horns

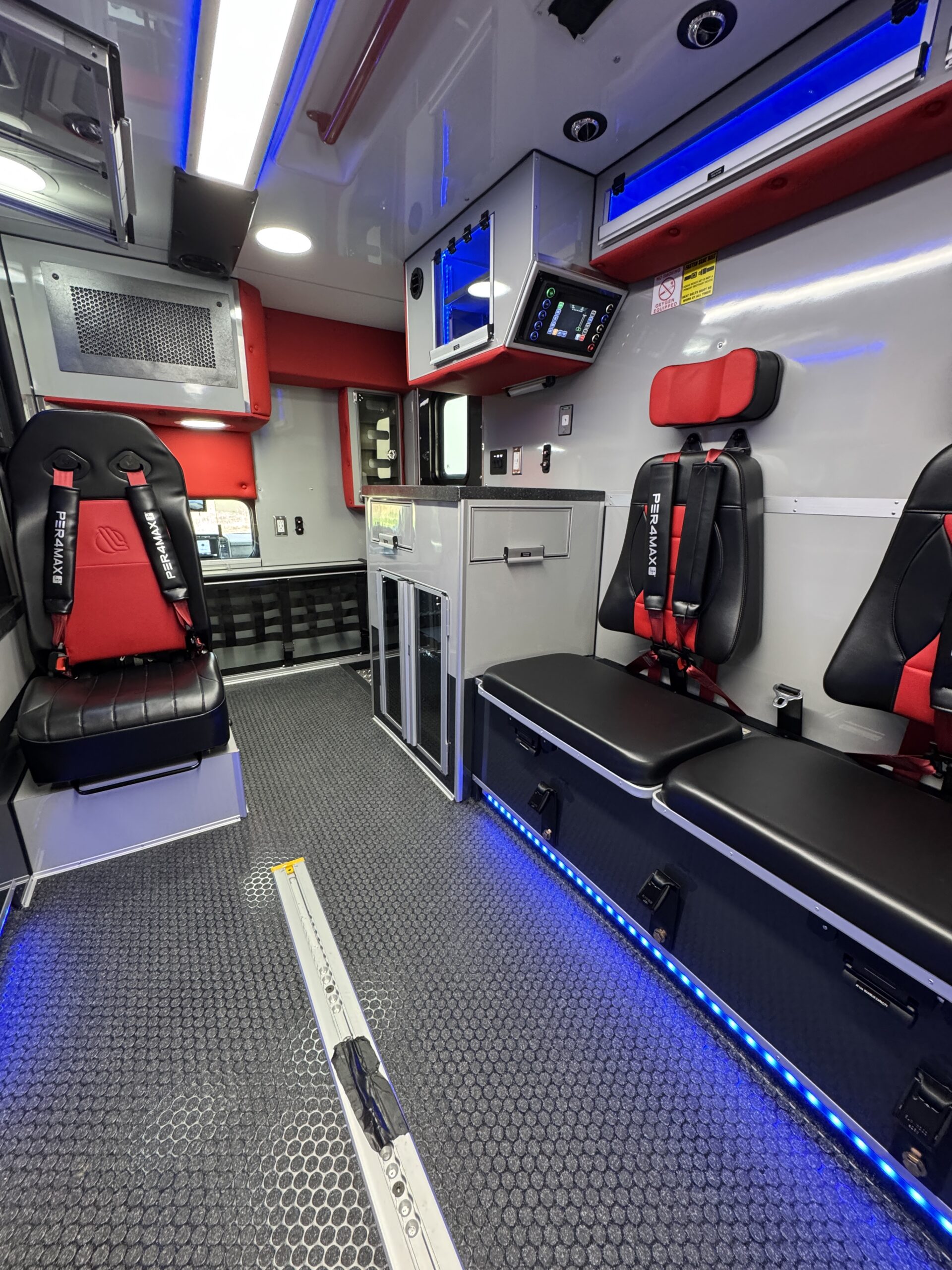

Patient Compartment & Finishes
-

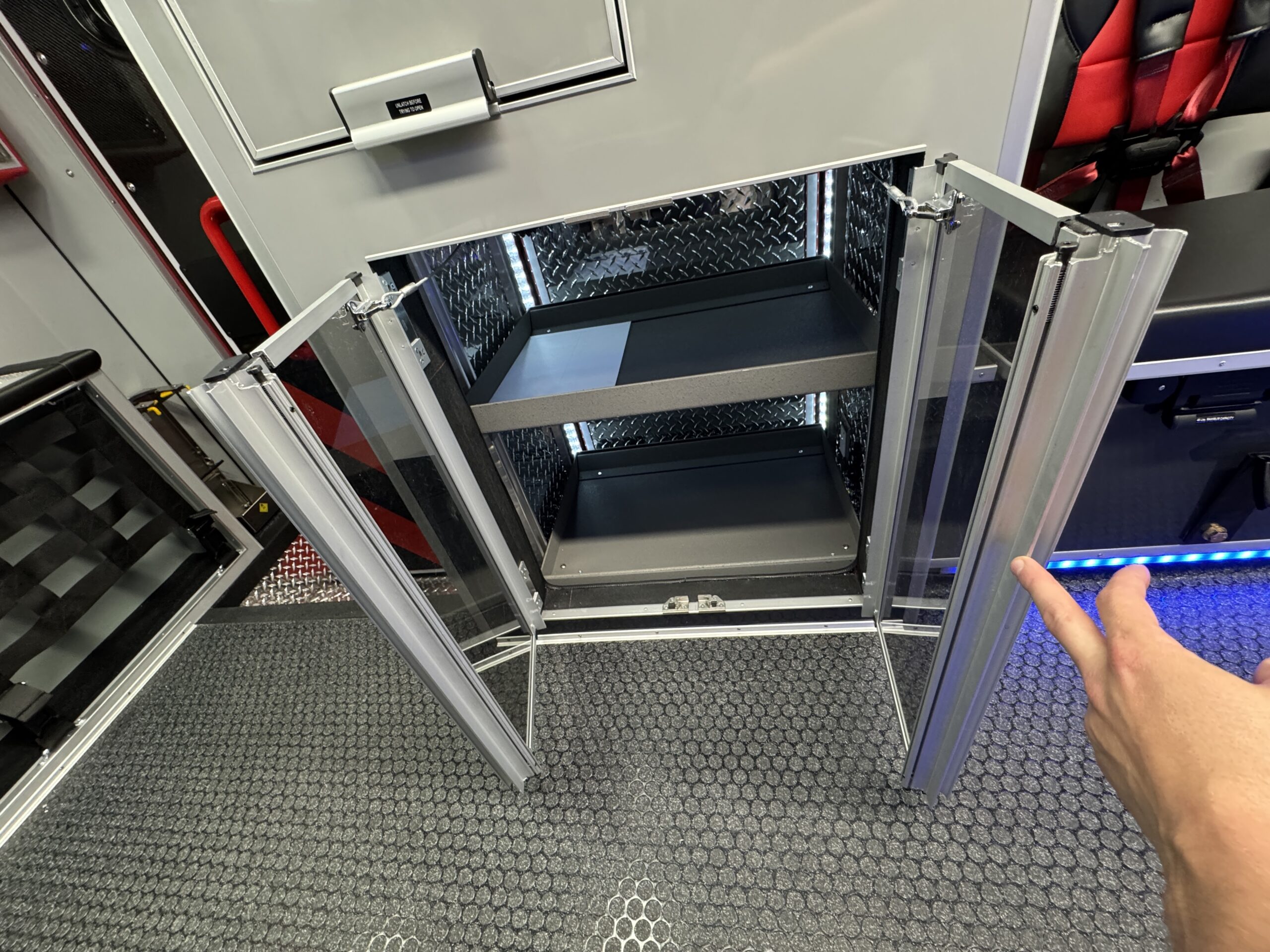

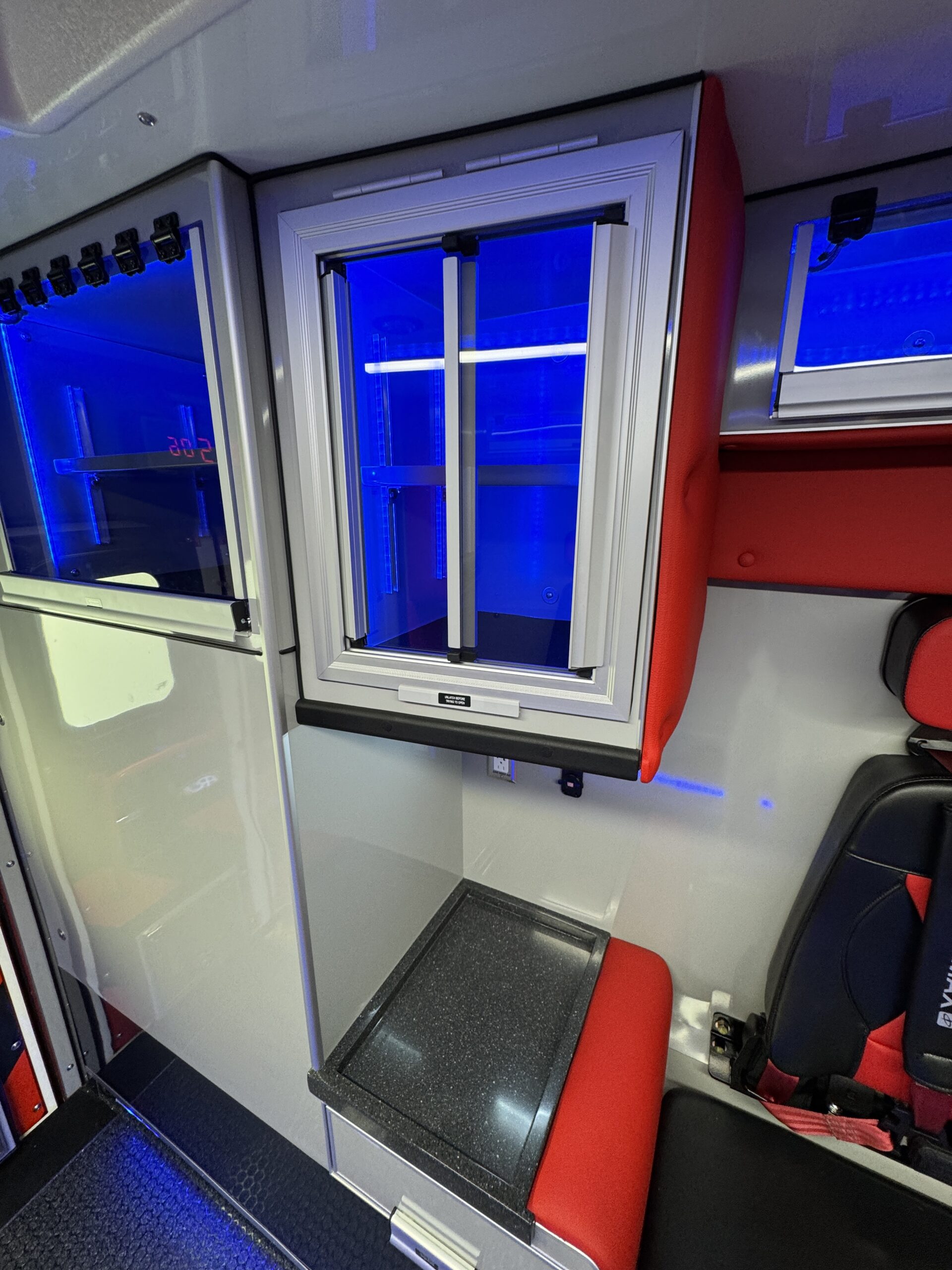

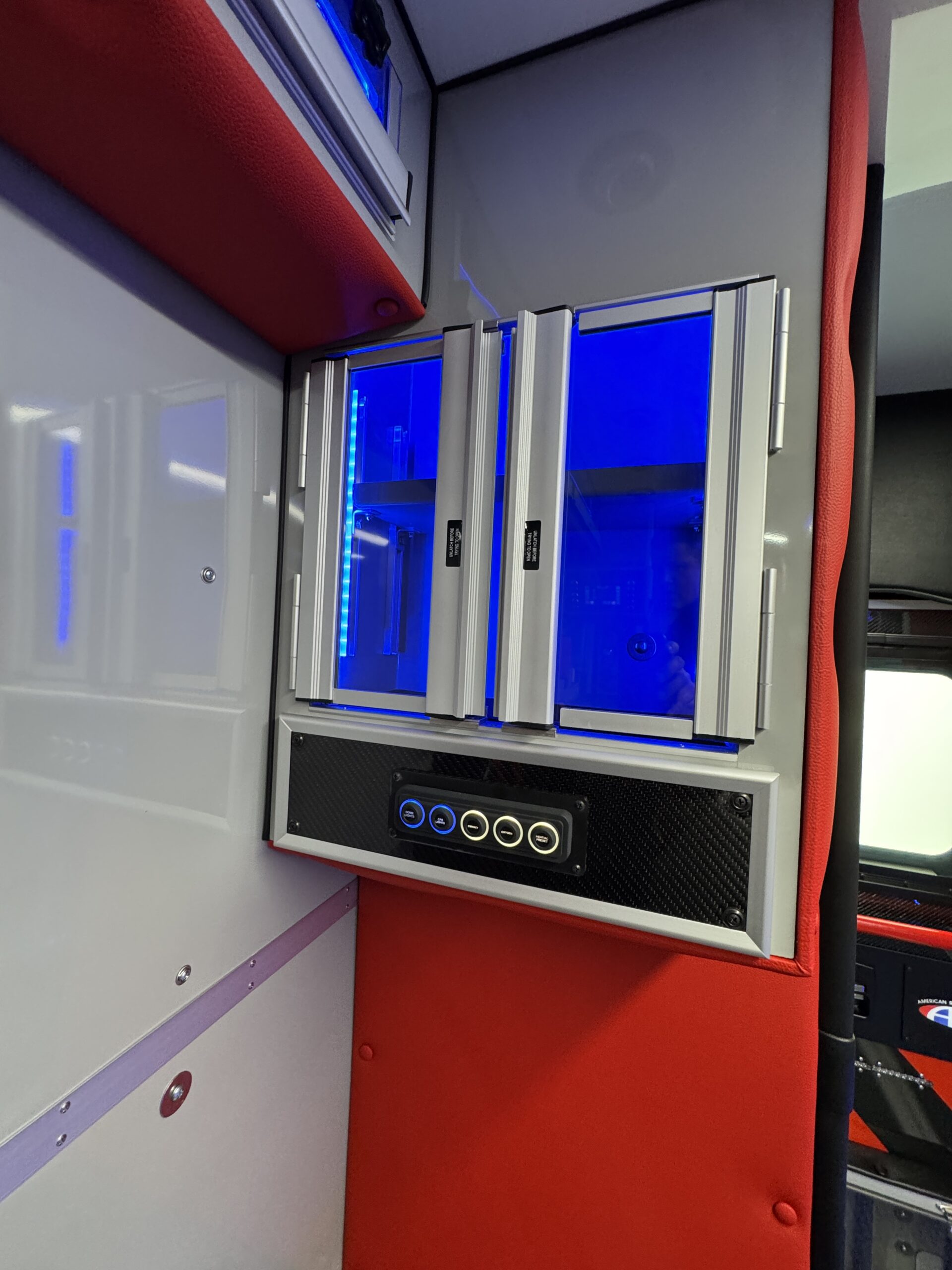

Powder-coated gray aluminum cabinetry with Life Defender latches
-

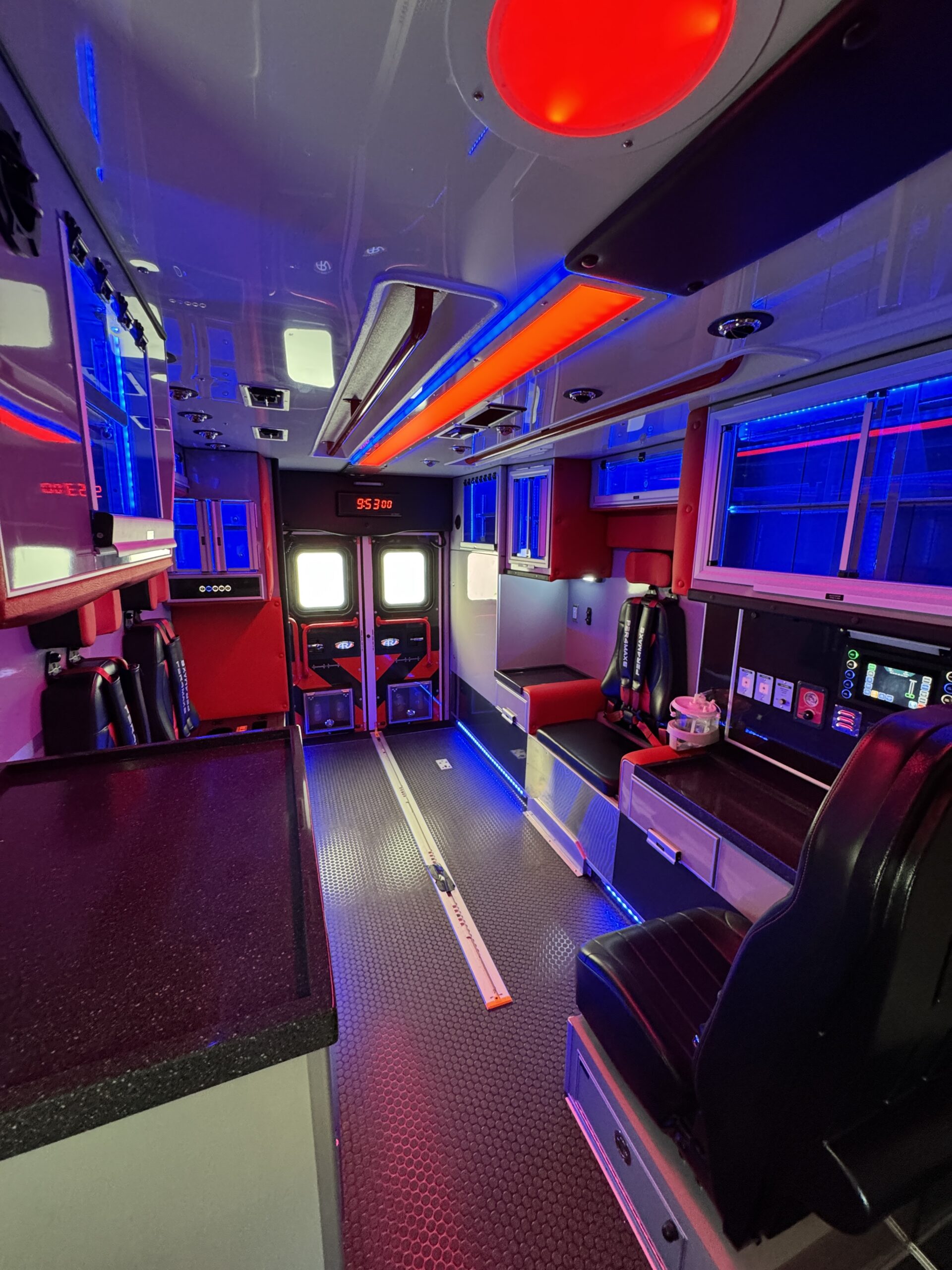

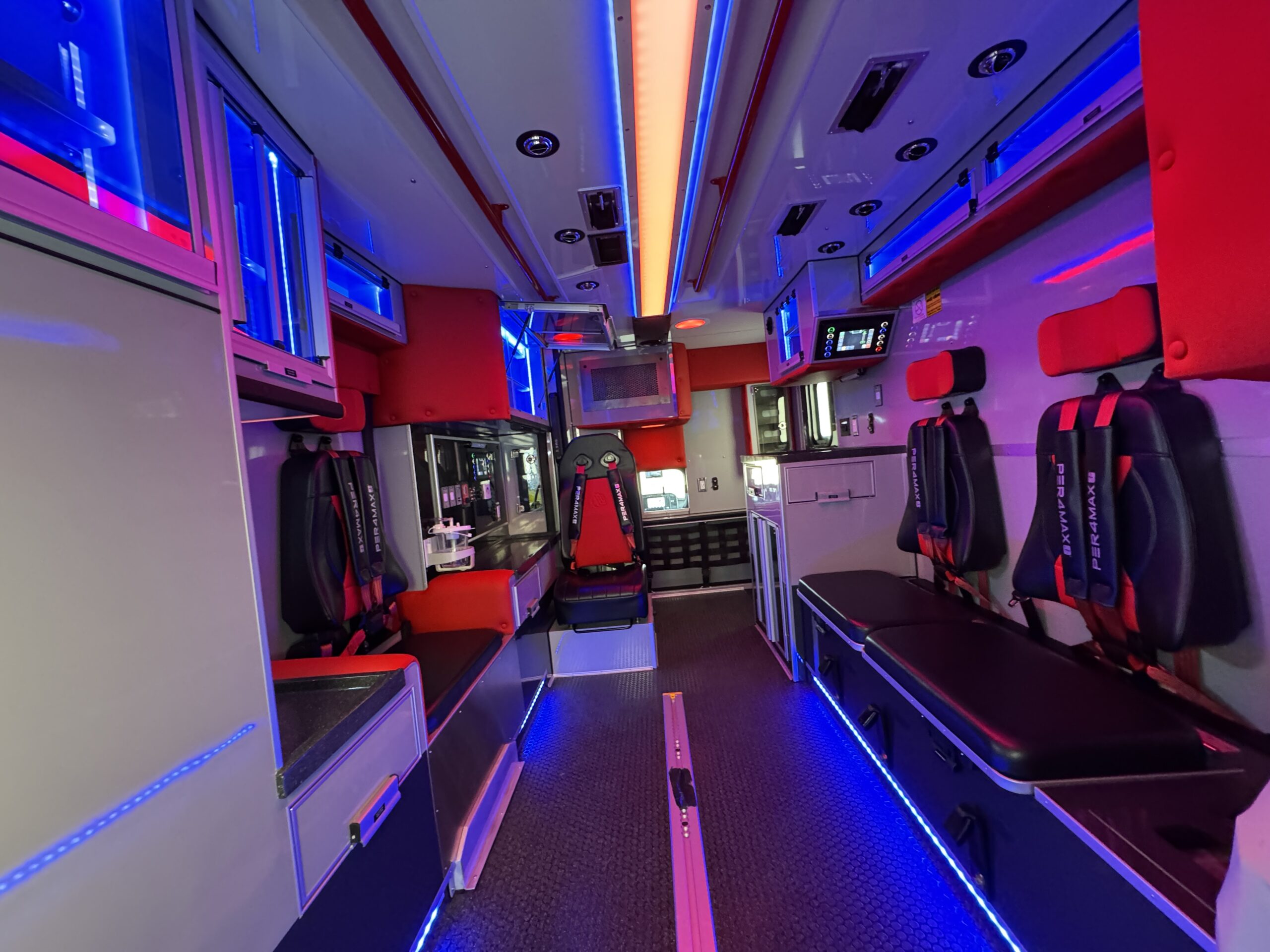

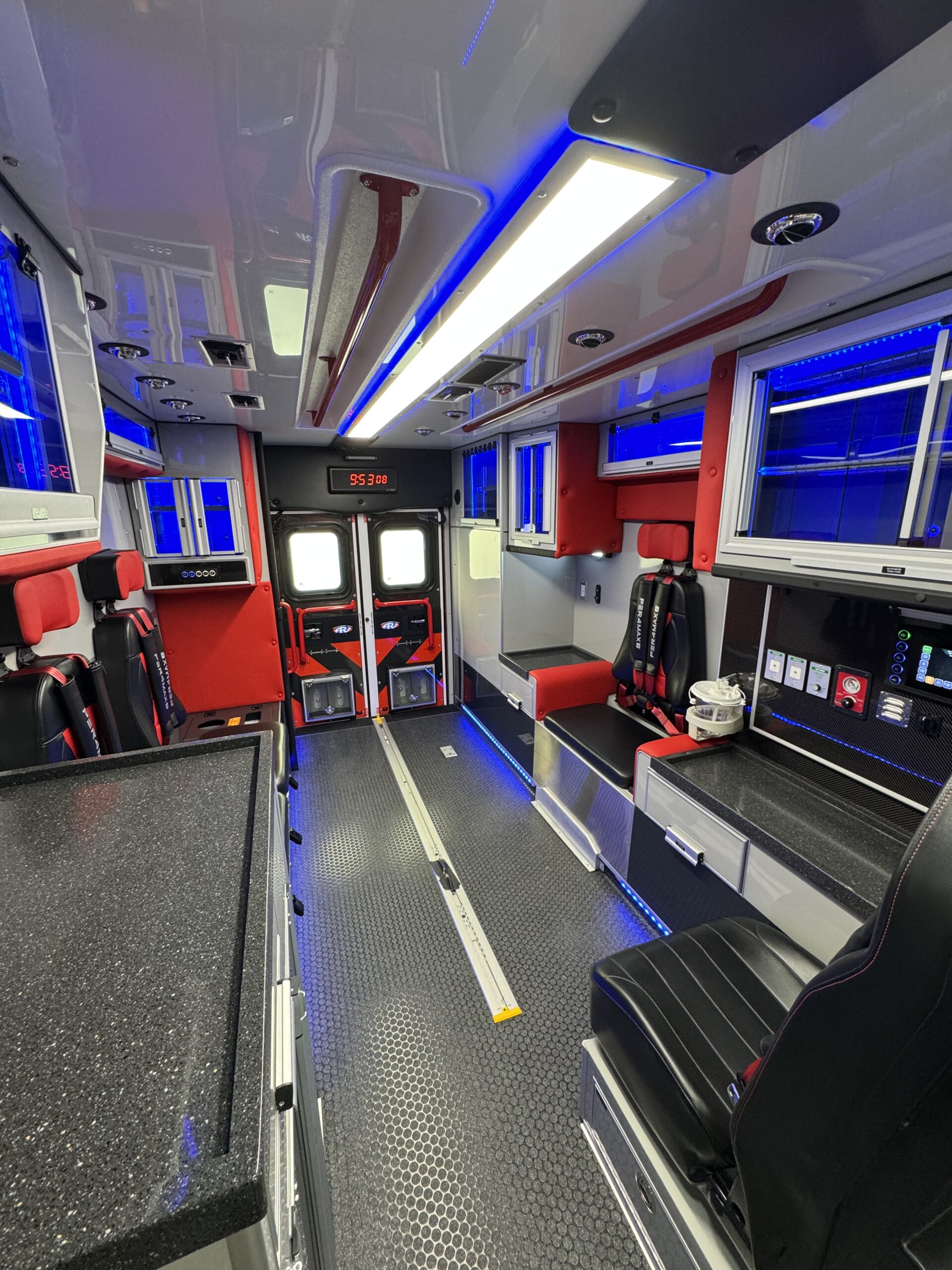

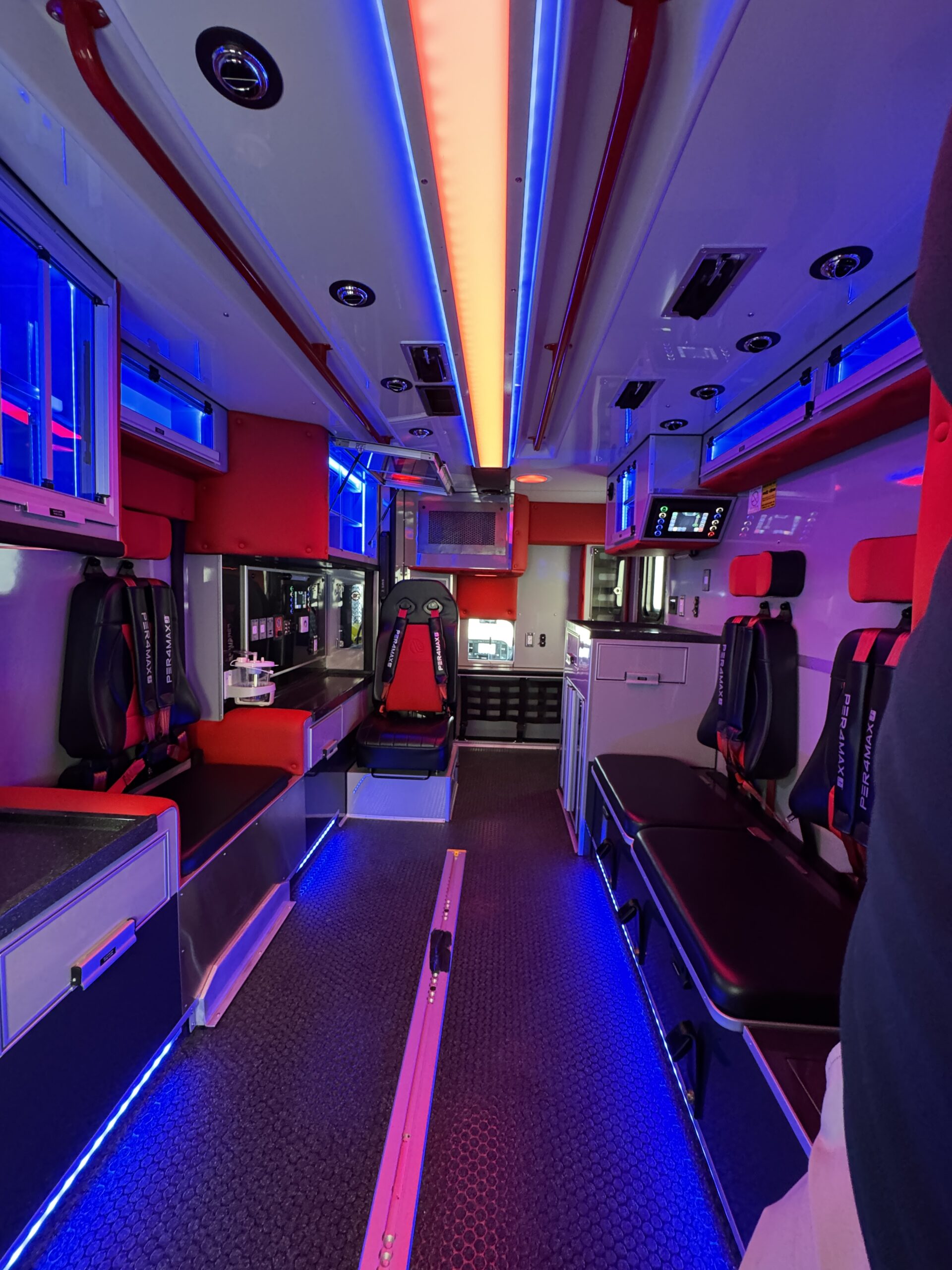

Wide-aisle interior layout
-
EVS 2280 Tri-BAC child safety seat
-
Wilsonart solid-surface countertops
-
AutoPulse/LUCAS storage (forward bulkhead below talk-thru)
-
Recessed IV bag hangers (Austin Hardware)
-

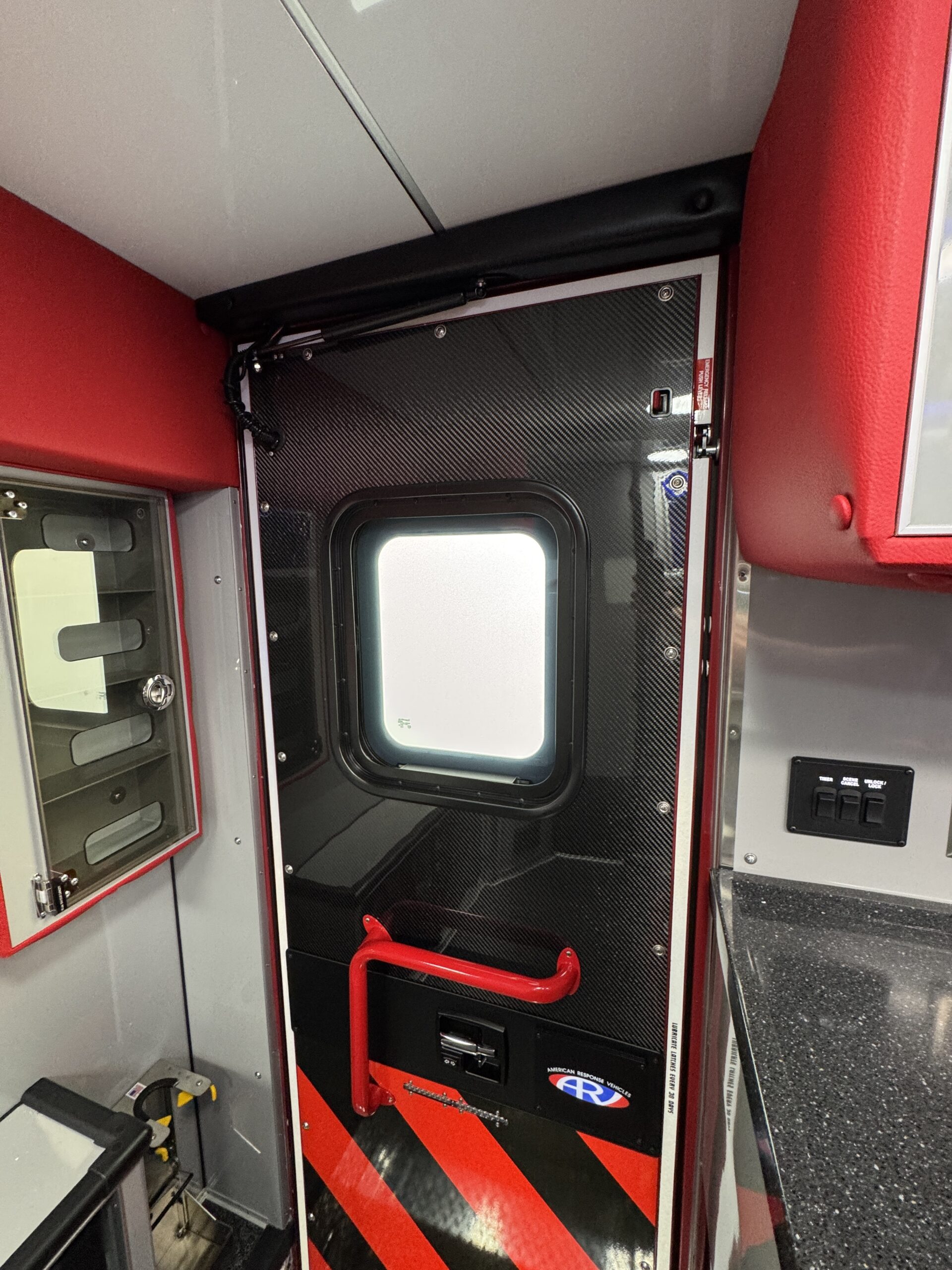

Recessed glove storage in rear doors
-
Patient door panel chevrons
-
Power-LOAD prep (floor plate installed)
-
Zico “D” portable O₂ bracket (forward bulkhead)
-
Recessed ceiling O₂ outlet over cot head
-

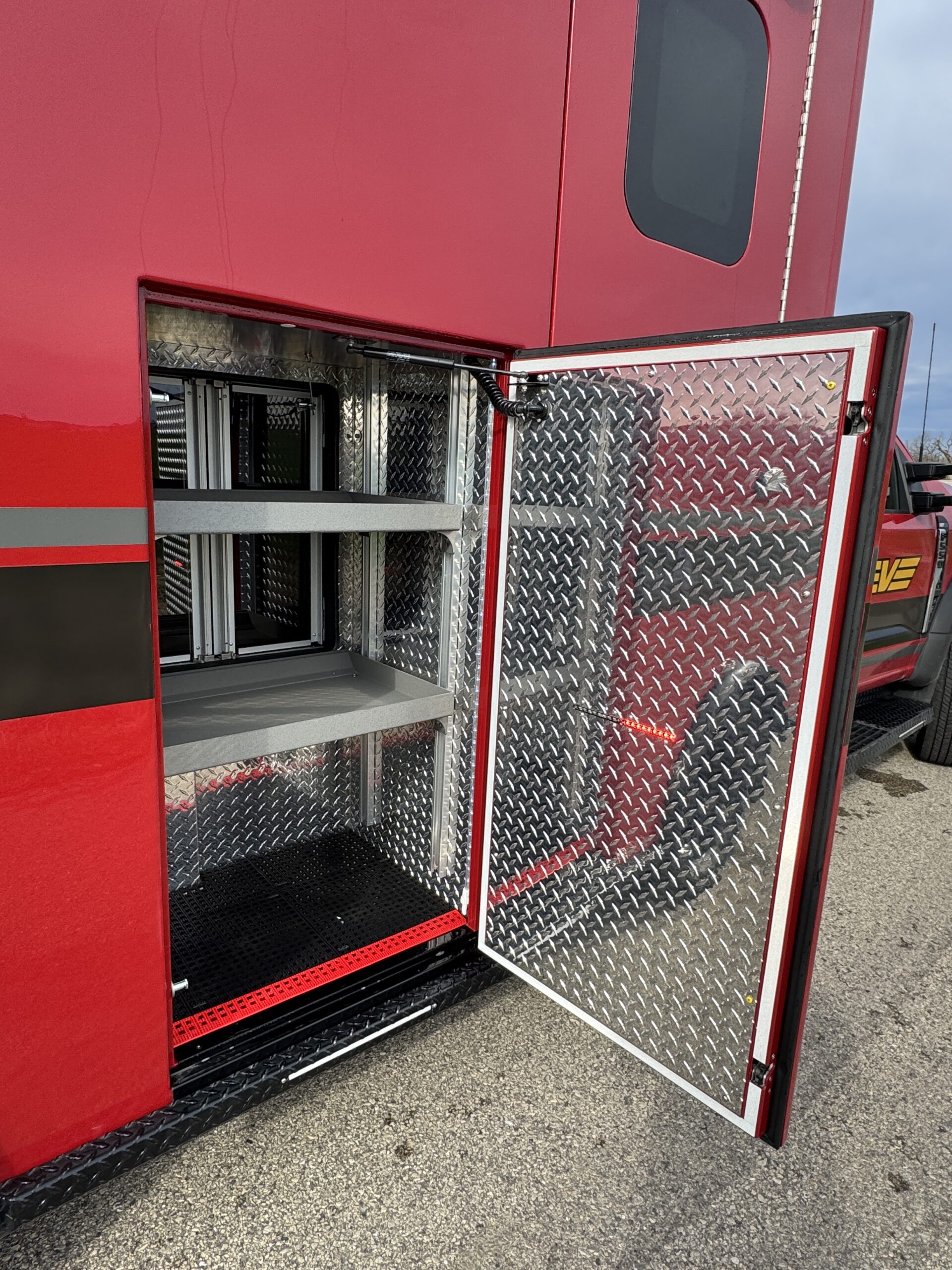

Inside/outside access to curbside rear compartment and ALS compartment
-
Adjustable cabinet dividers (street-side action-area overhead)
-
Loincoin 150 Onyx Black flooring
-

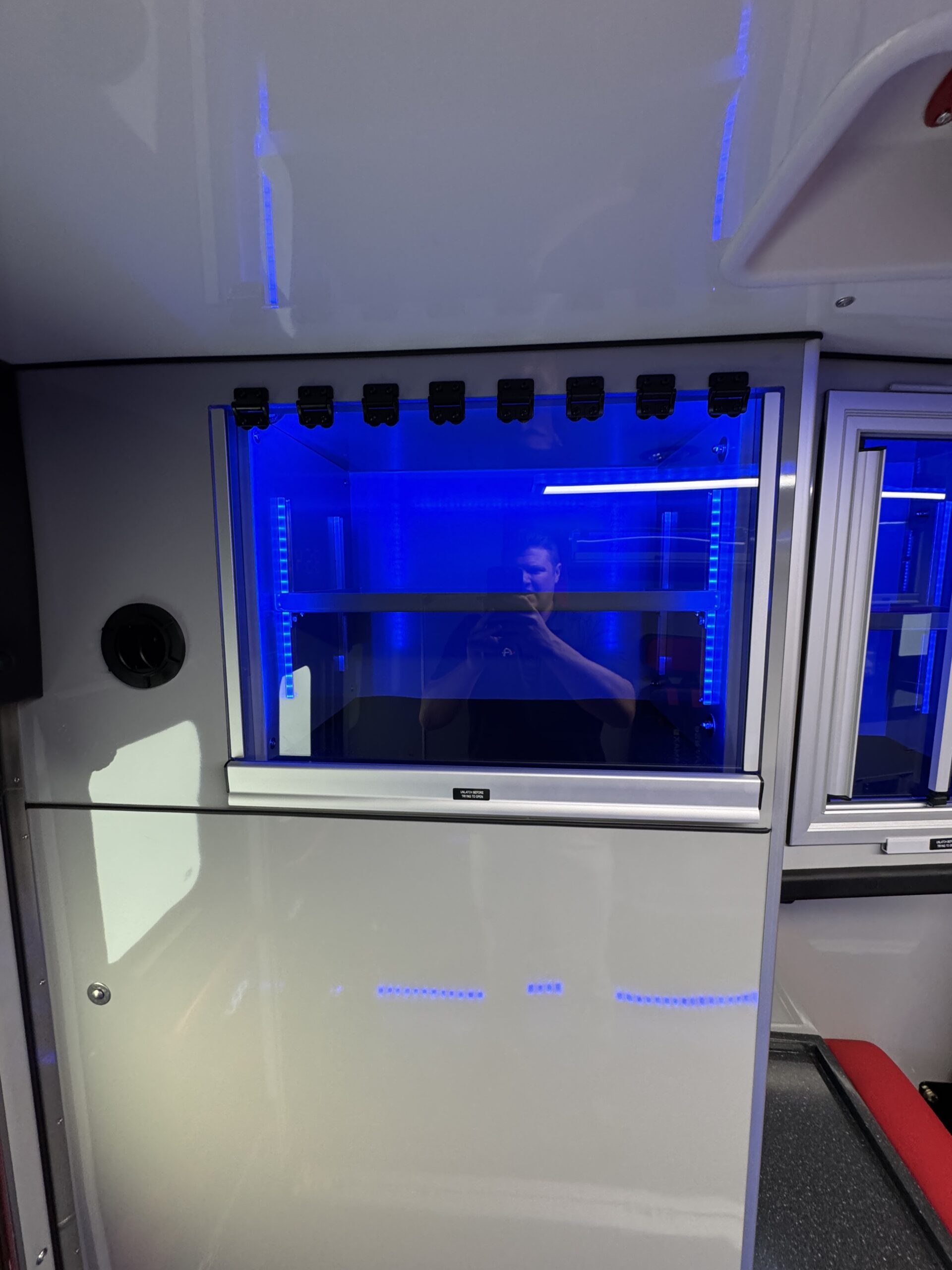

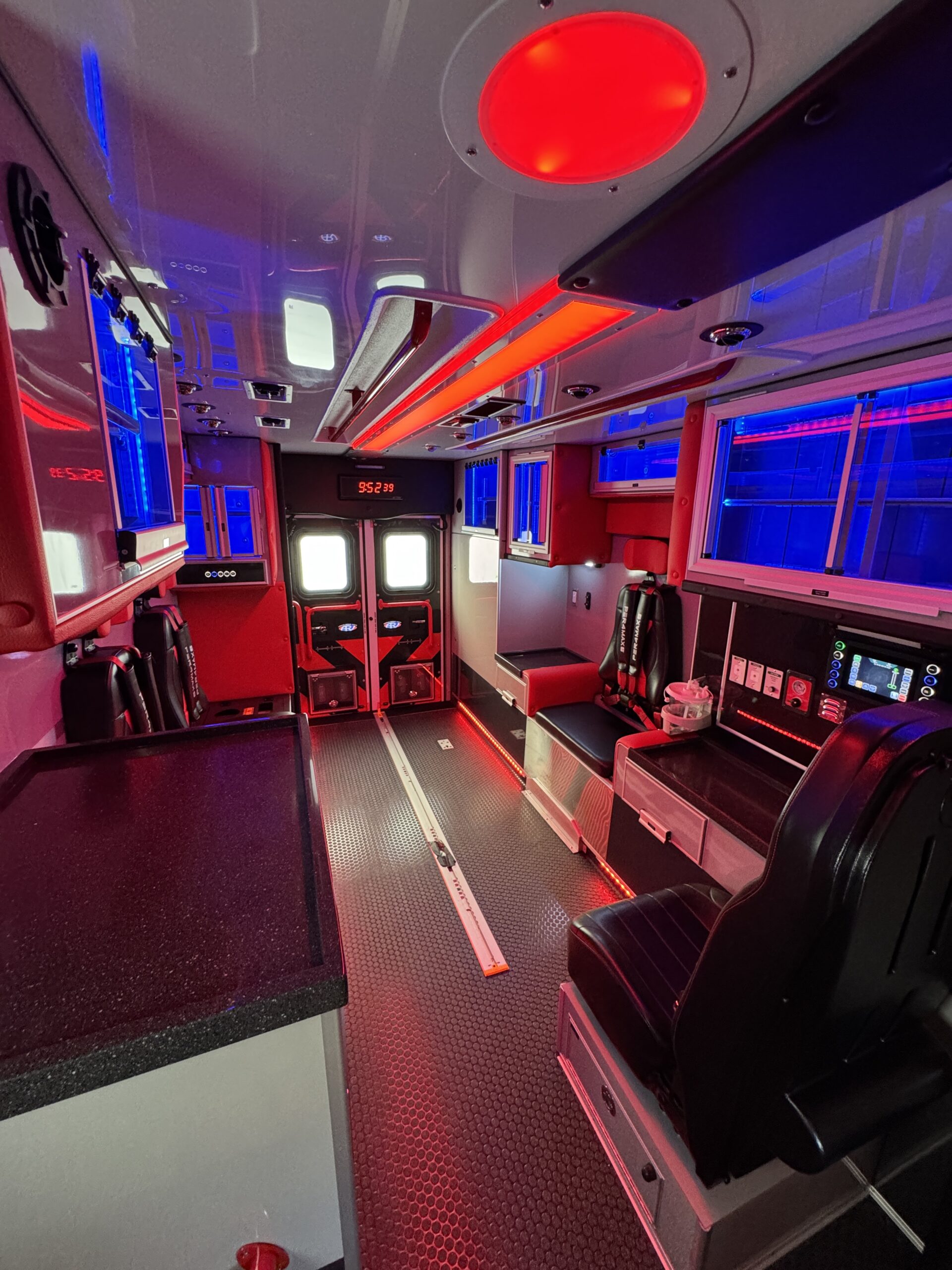

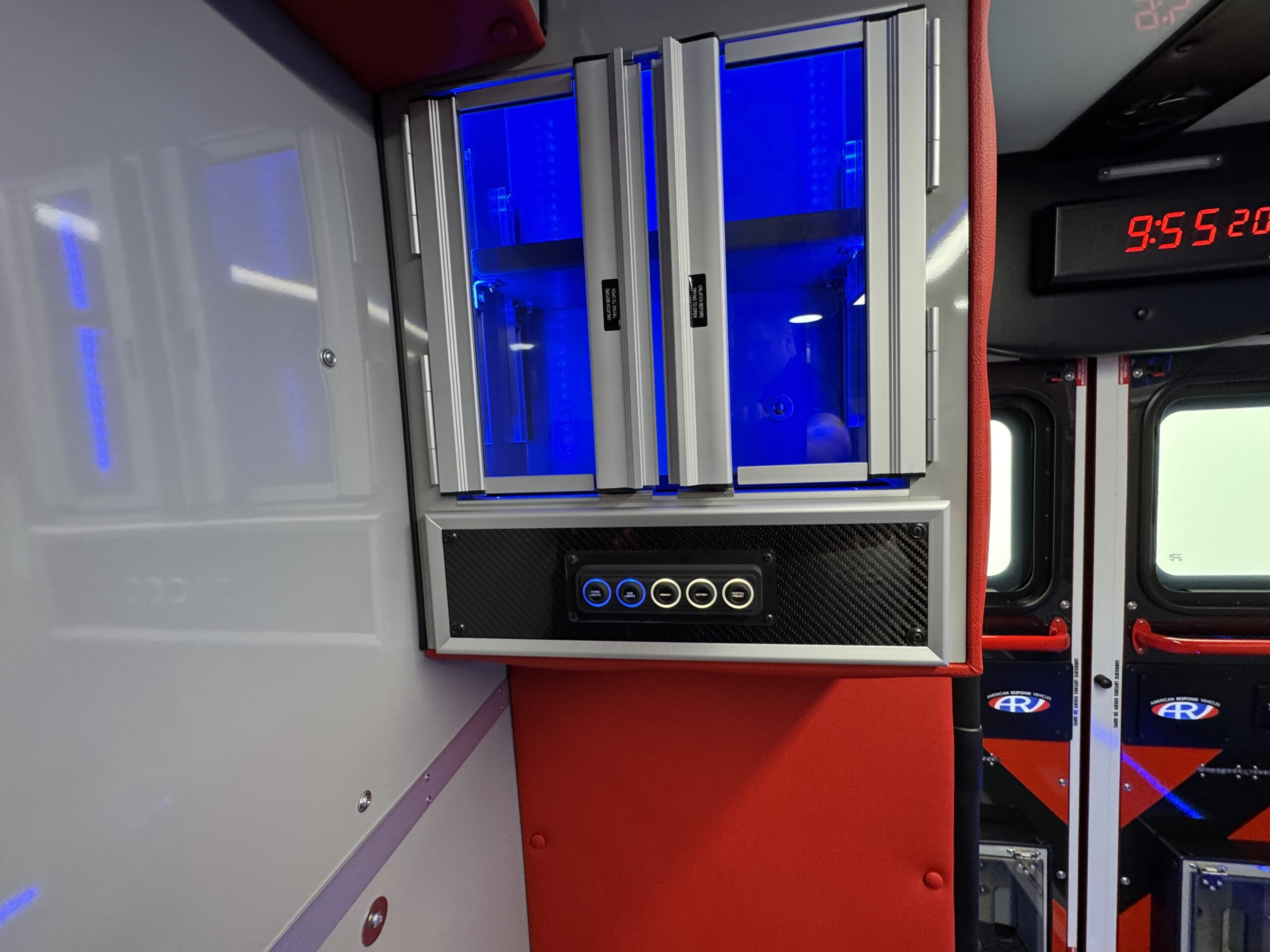

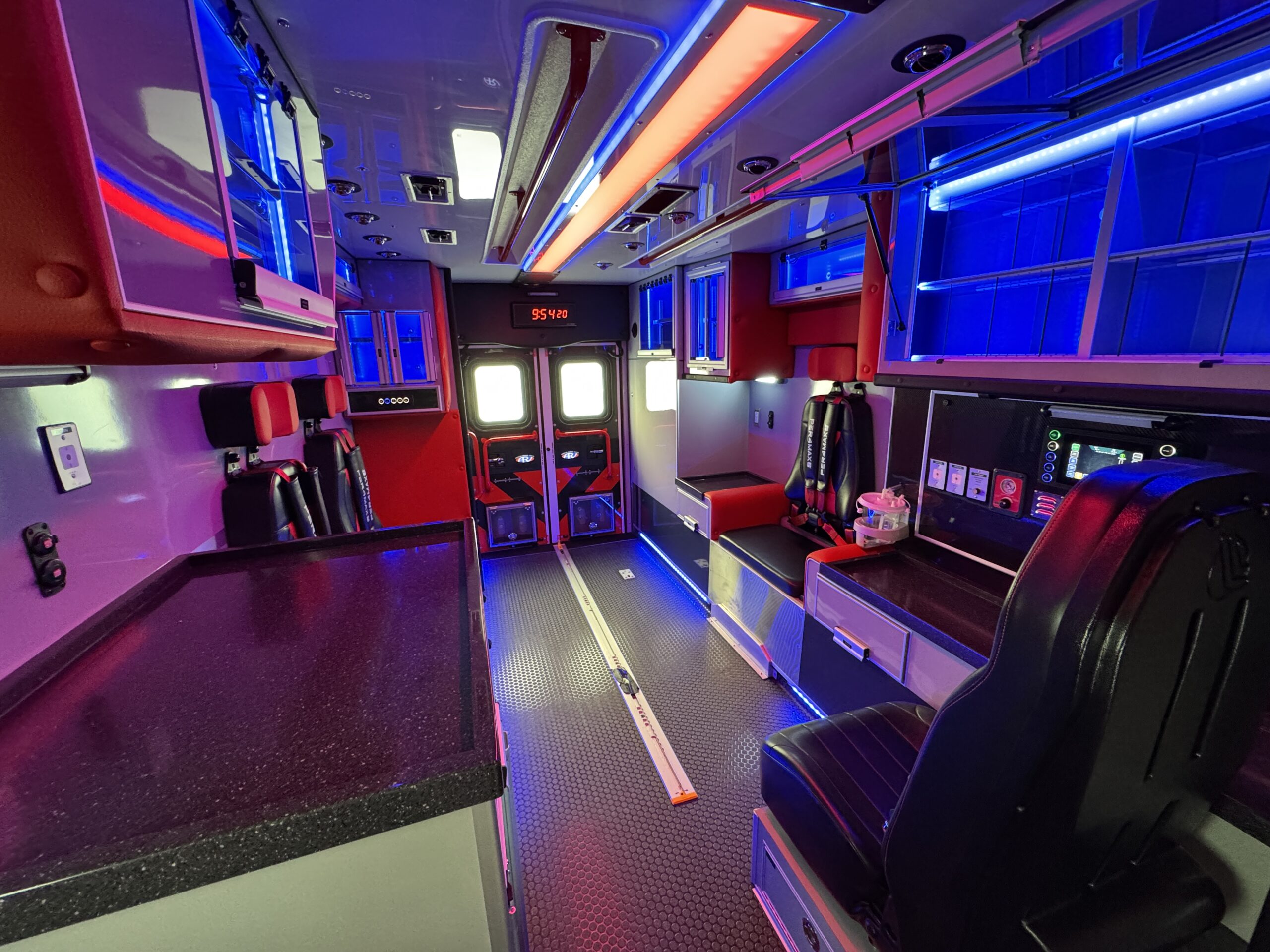

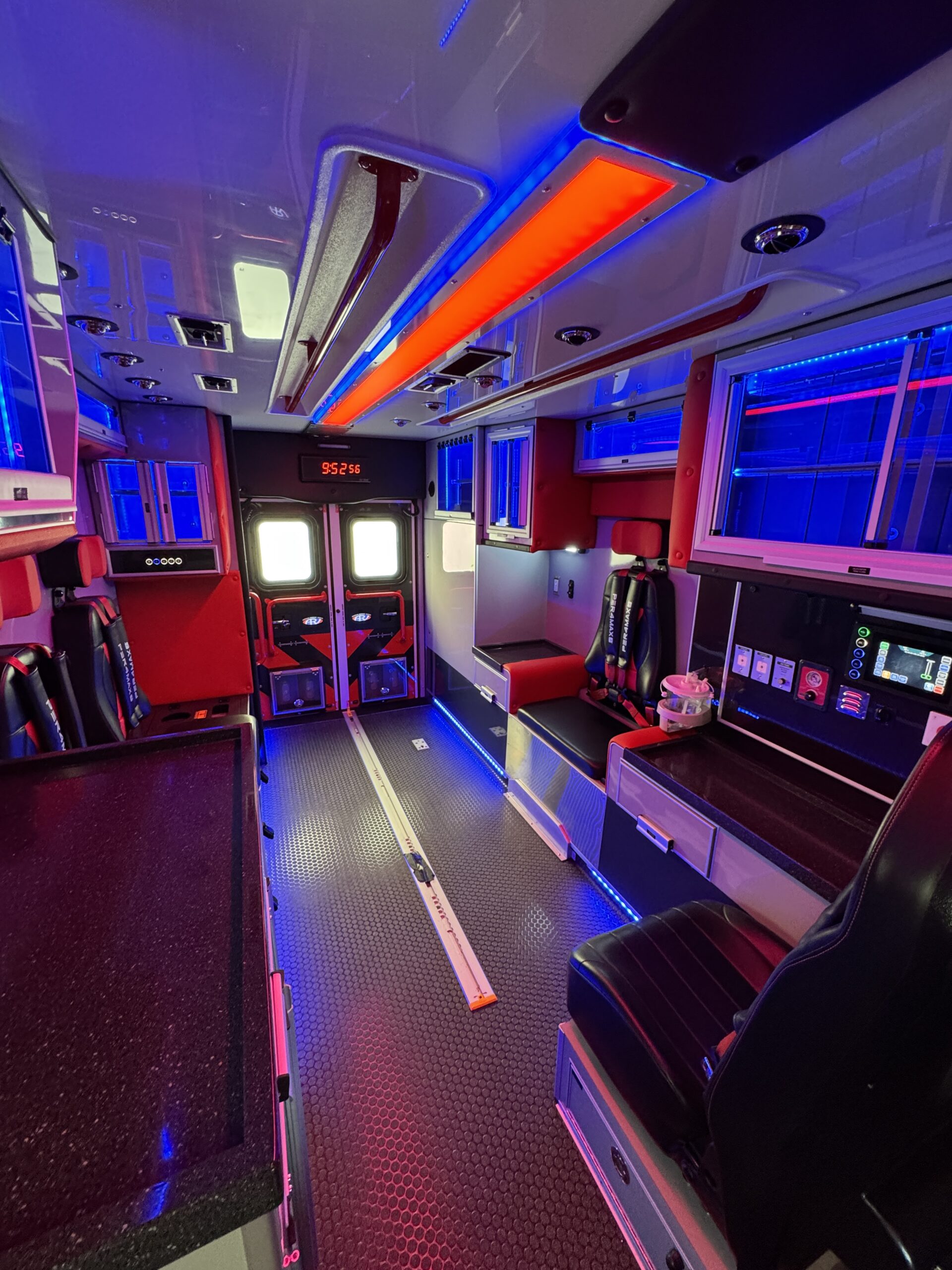

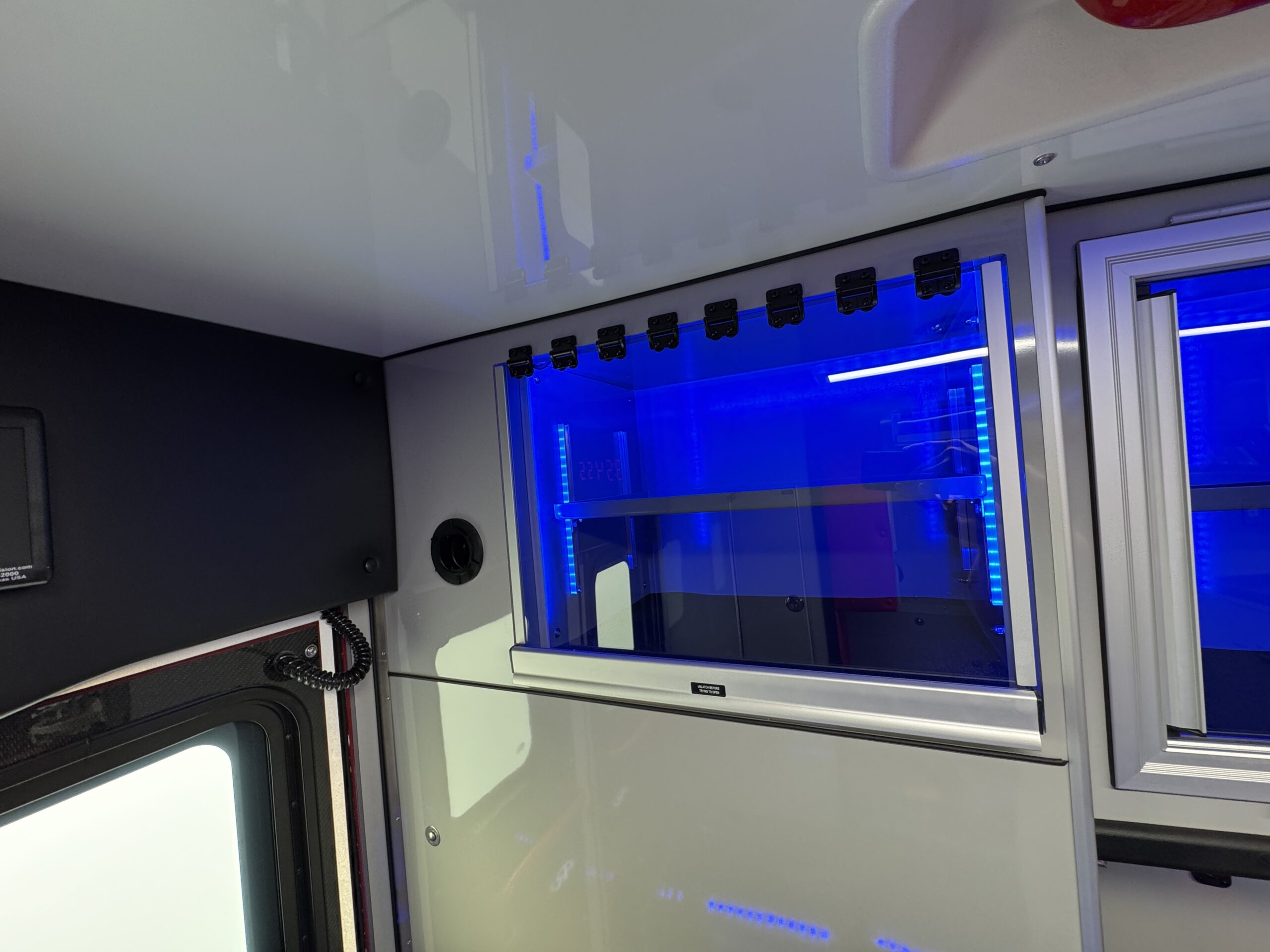

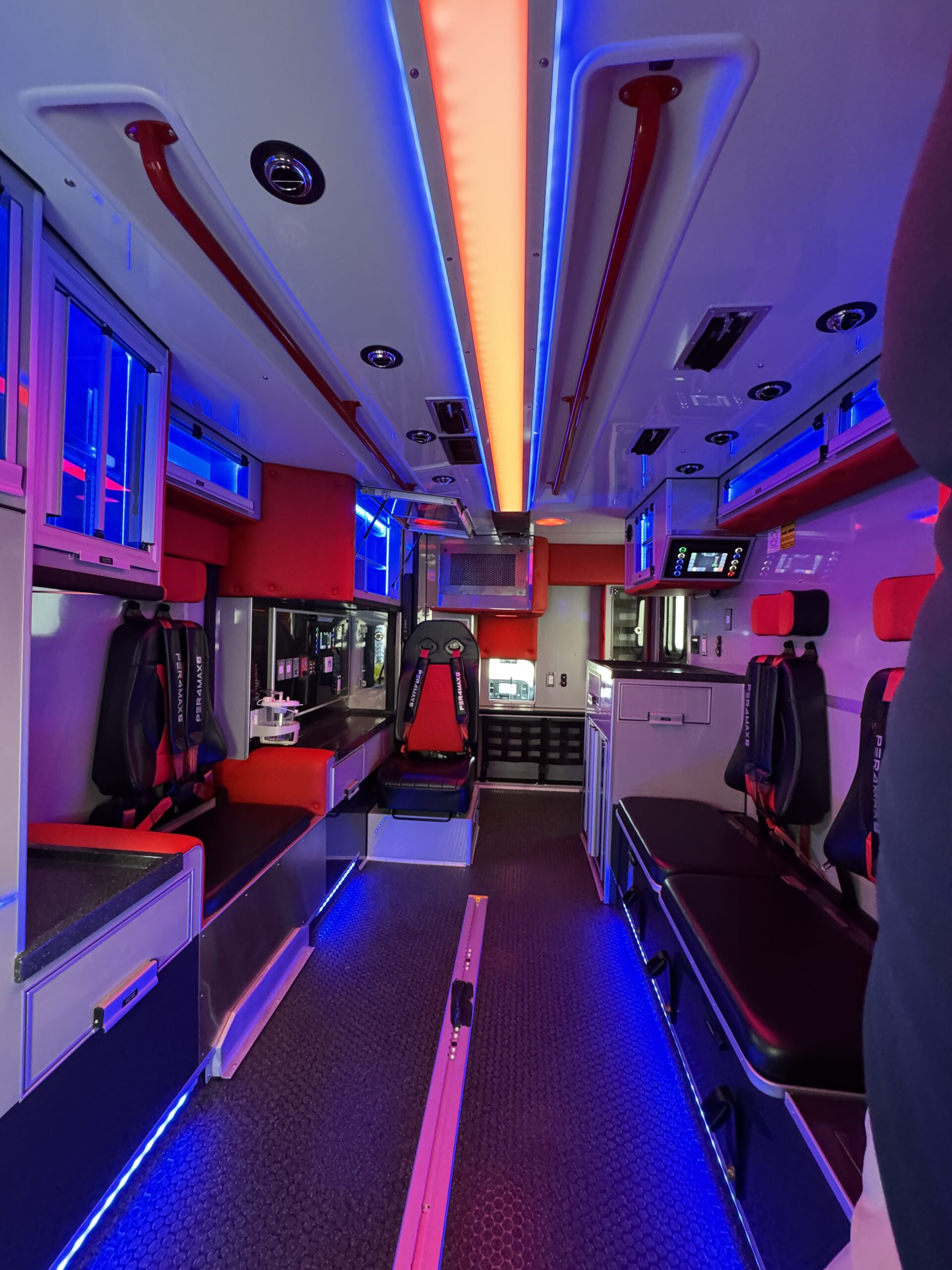

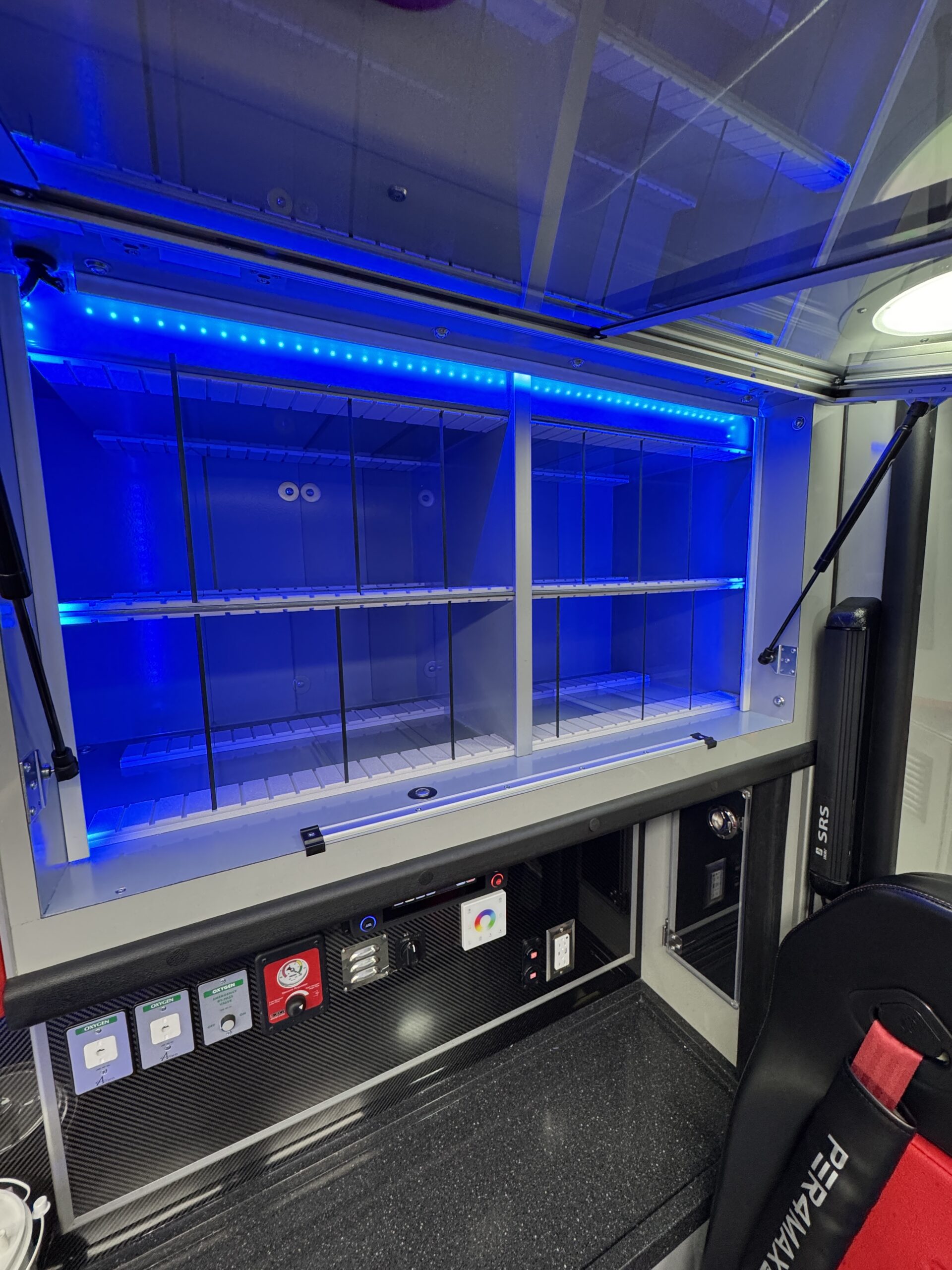

Lighting: patient dome rail w/ red mode, RGB perimeter, Blue DayBright cabinets, Amdor Pathfinder floor lights (blue), white strip task lighting
Availability & Next Steps
This 2024 demo is on the ground and ready. If you’d like photos, build sheet, or pricing, use the contact form below or give us a call at 888-448-8881!
